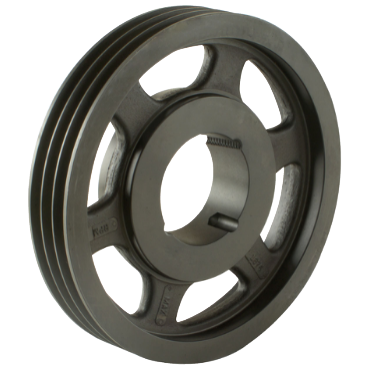

Martin 35V750TB 5V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 35V750TB is a 5V Series Hi-Cap Wedge Taper Bushed Sheave designed for high-performance power transmission. This sheave is adaptable for various applications and meets demanding industrial requirements.

• Design allows for rim speeds of up to 6,500 feet per minute.
• Constructed from durable cast iron for longevity.
• Compatible with other manufacturers' bushings and sheaves.

Product Highlights

Statically balanced sheave suitable for a range of industrial settings, enhancing efficiency in power transmission.

Product Information

Standard Information

• Brand: Martin
• MPN: 35V750TB

Technical Specifications

• Outside Diameter: 7.50 inches
• Bore Range (Min): 0.5 inches
• Bore Range (Max): 2.5 inches
• Number of Grooves: 3
• Bushing Type: Taperlock
• Bushing Series: 2517
• Material: Cast Iron
• Weight: 15.0 pounds
• Pitch Diameter: 7.4 inches
• Face Width: 2.375 inches
