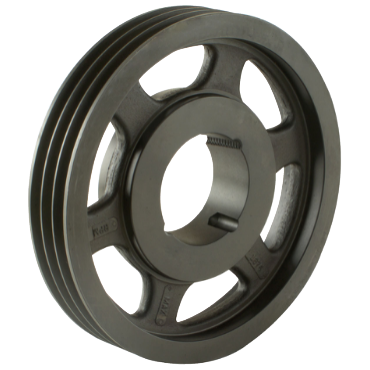

Martin 35V1180TB 5V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 35V1180TB is a 5V Series Hi-Cap Wedge Taper Bushed Sheave designed for various industrial applications. This sheave features a taperlock design and is compatible with multiple manufacturer’s bushings.

• Outside Diameter: eleven point eight inches
• Number of Grooves: three
• Bushing Type: Taperlock

Product Highlights

This sheave is built to withstand tough conditions, providing reliability and efficiency in power transmission systems.

Product Information

Standard Information

• Brand: Martin
• MPN: 35V1180TB

Technical Specifications

• Bushing Series: 3020
• Belt Size: 5V
• Overall Length: two point three eight inches
• Weight: twenty-nine pounds
• Material: Cast Iron
• Pitch Diameter: eleven point seven inches
• Bore Range (Max): three inches
• Bore Range (Min): zero point nine three seven inches
