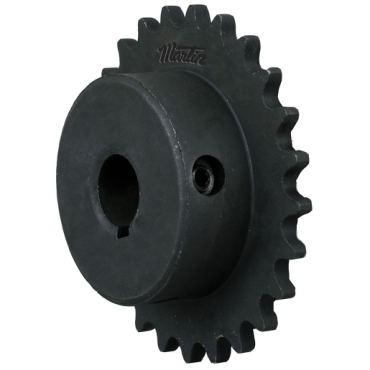

Martin 35BS245/8 Bored to Size Sprocket - 35 / 3/8 in

Product Description

The Martin 35BS245/8 is a bored to size sprocket designed for standard roller chains. It features a bore diameter of zero point six two five inches and includes twenty-four teeth made of steel. This product is ideal for mechanical power transmission applications.

• Made from high-carbon steel for durability
• Concentric bores to minimize run out
• Includes two setscrews keyed on the centerline of the tooth

Product Highlights

This finished bore sprocket offers precision machining and meets ANSI standards, ensuring quality and reliability in performance.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Pitch Type: Single
• Bore Diameter: 0.6250 inches
• Tooth Width: 0.168 inches
• Hub Diameter: 2 inches
• Number Of Teeth: 24
• Pitch Diameter: 2.8730 inches
• Outside Diameter: 3.0730 inches
• Length Through Bore: 0.8750 inches
• Storage Dimension Width: 3.2500 inches
• Storage Dimension Height: 15/16 inches
• Storage Dimension Length: 3.2500 inches
• Surface Treatment: Protective Coating
• Chain Number & Pitch: 35 / 3/8 inches
• Manufacturer UPC Number: 697950131825
