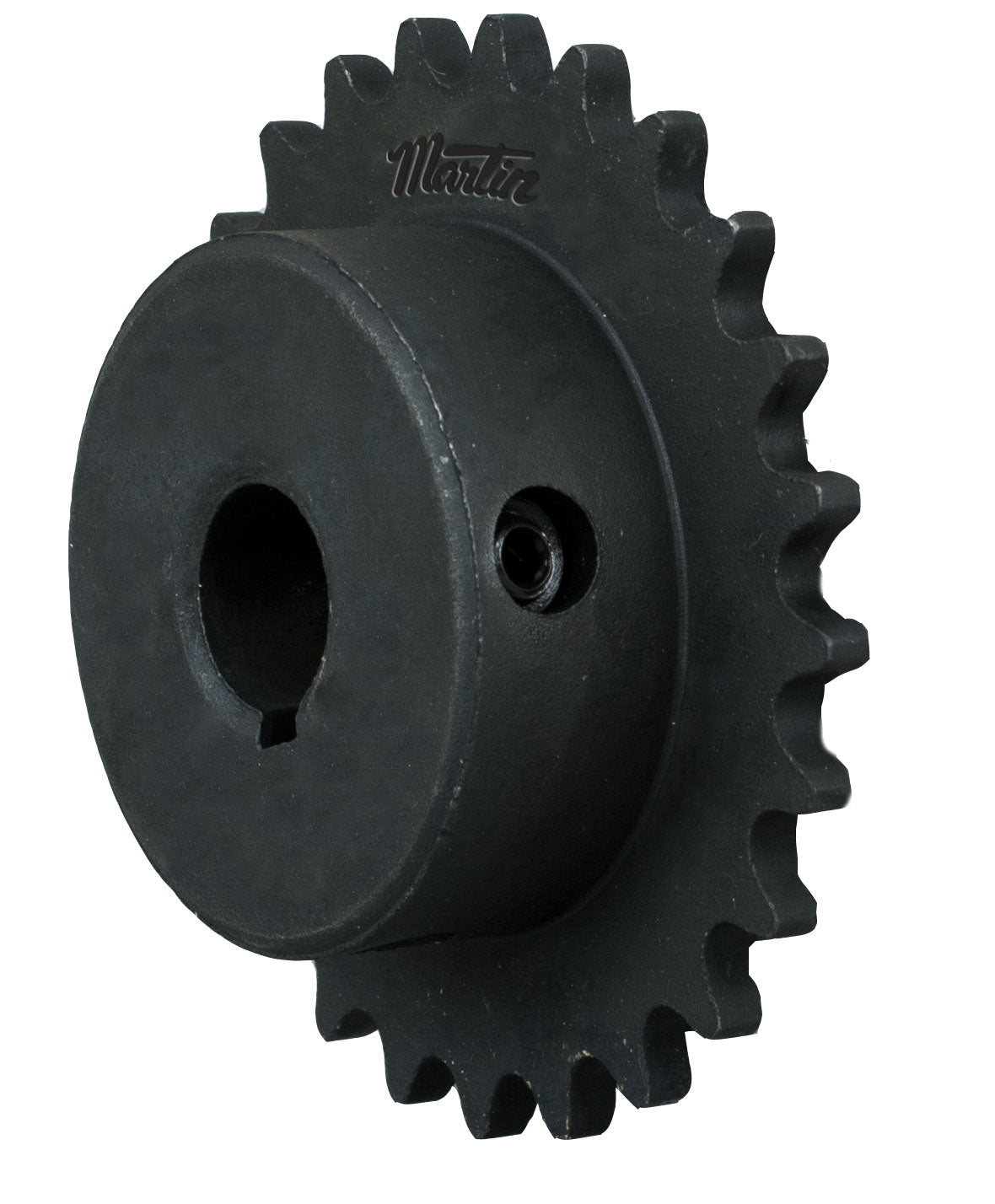

Martin 35BS223/4 bored to size sprocket

Product Description

The Martin 35BS223/4 is a bored-to-size type BS single pitch roller chain sprocket with a bore diameter of three-fourth inches. It features a robust steel construction and is designed for durability and precision.

• Keyway aligned on the center line of the tooth
• Manufactured from high carbon steel
• Includes two setscrews for secure attachment

Product Highlights

This sprocket is ideal for applications requiring reliable operation and precision alignment. Its design minimizes runout, ensuring smooth operation in chain drive systems.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Manufacturer Part Number: 35BS223/4

Technical Specifications

• Bore Diameter: three-fourth inches
• Chain Size: #35
• Hub Diameter: two inches
• Includes: (2) setscrews
• Keyway Size: three-sixteenth by three-thirty-second inches
• Length Through Bore: seven-eighth inches
• Material: Steel
• Number of Teeth: 22
• Pitch: three-eighth inches
• Pitch Diameter: two point six three five inches
• Screw Size: one-fourth-20 by one-fourth inches
• Standards/Approvals: PROP65 warning applies
• Type: Bored-to-Size Type BS
