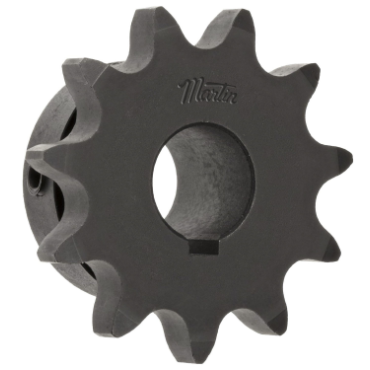

Martin 35BS157/8 No. 35 - 3/8 Pitch - Single - Bored to Size Sprocket

Product Description

The Martin 35BS157/8 is a single bored-to-size sprocket designed for use in various mechanical applications. This sprocket conforms to ANSI B29.1-1975 standards, ensuring reliability and compatibility with standard roller chain systems.

• Conforms to ANSI standards
• Constructed from high carbon steel
• Includes keyway and set screws

Product Highlights

The Martin 35BS157/8 sprocket is ready to be installed on your machinery. Its precision design features a bored finished bore for tight fit on shafts. Ideal for mechanical power transmission applications where efficiency is key.

Product Information

Standard Information

• Chain Number: 35
• Bore Diameter: 0.875 inches

Technical Specifications

• Pitch Diameter: 1.804 inches
• Number of Teeth: 15
• Material: Steel
• Hub Diameter: 1.3438 inches
• Width Across Teeth: 0.168 inches
• Hardened Teeth: Without hardened teeth
• Keyway Size: 3/16 x 3/32 inches
• Weight: 0.24 LB
