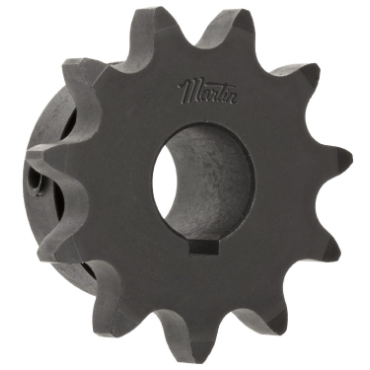

Martin 35BS12HT 3/4 SABER Finished Bore Sprocket - Bored to Size, 0.7500 in Bore, 12 Teeth, Steel Material

Product Description

The Martin 35BS12HT3/4 is a finished bore sprocket designed for mechanical power transmission. This sprocket is bored to size with a bore diameter of zero point seven five inches, features twelve teeth, and is constructed from high carbon steel. It is ideal for various applications in chain and sprocket systems.

• Manufactured with hardened teeth for durability
• Includes two setscrews for secure attachment
• Complies with ANSI standards for precision and quality

Product Highlights

This product is highly suitable for those seeking reliable and robust sprockets for their mechanical applications.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 35BS12HT3/4
• Tooth Width: 0.1680 inches
• Hub Diameter: 1.2188 inches
• Bore Diameter: 0.7500 inches
• Pitch Diameter: 1.4489 inches
• Outside Diameter: 1.6250 inches
• Chain Number & Pitch: 35 / 3/8 inches
• Set Screw Size: 0.250-20 X 0.250 inches
