Product Description

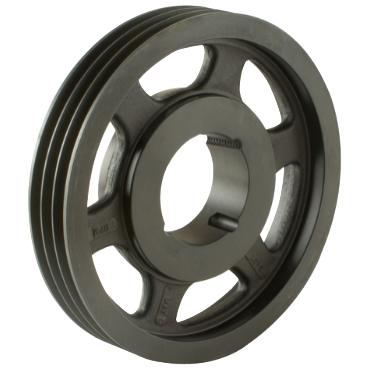

The Martin 33V800TB is a 3V Series Hi-Cap Wedge Taper Bushed Sheave. It is designed to meet heavy-duty requirements in various industrial applications.
- Three grooves for efficient belt engagement
- Outside diameter of eight inches
- Compatible with 3V belt size and requires a 2517 bushing
Product Highlights
The Martin sheave provides reliable performance with features for enhancing productivity.
Product Information
Standard Information
-
Brand: Martin
-
MPN: 33V800TB
Technical Specifications
-
Material: Cast Iron
-
No. of Grooves: 3
-
Type: B1
-
Outside Diameter: 8.00 inches
-
Bore Range [Min]: 0.5 inches
-
Bore Range [Max]: 2.6875 inches
-
Bushing Series: 2517
-
Bushing Type: Taperlock
-
Weight: 15.0 lbs
-
EAN or UPC: 697950155111
