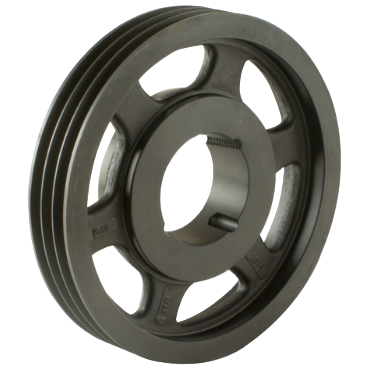

Martin 33V690TB 3V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 33V690TB is a 3V Series hi-cap wedge taper bushed sheave designed for durability and adaptability. It meets industrial requirements and offers compatibility across different manufacturers’ sheaves and bushings.

• Compatible with other taper bushings
• Statically balanced for rim speeds of up to 6,500 ft/min
• Sheave sizes available from two to eighty-eight inches

Product Highlights

This sheave is designed for high performance and reliability in various mechanical applications.

Product Information

Standard Information

• Brand: Martin
• MPN: 33V690TB

Technical Specifications

• Bore Range [Max]: 2.5 inches
• Bore Range [Min]: 0.5 inches
• No. of Grooves: 3
• Overall Length: 1.91 inches
• Outside Diameter: 6.90 inches
• Pitch Diameter: 6.85 inches
• Bushing Series: 2517
• Material: Cast Iron
• Weight: 10.0 lbs
