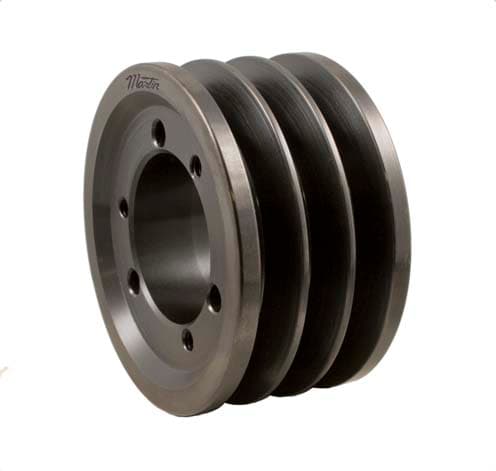

Martin 33V365SH Bushing Bore V-Belt Pulley - 3V Belt Section, 3 Groove, 3.6 in Pitch Dia., 3.65 in O.D.

Product Description

The Martin 33V365SH is a bushing bore V-belt pulley that features a 3V belt section. This pulley has three grooves and a pitch diameter of three point six inches. It has an outer diameter of three point six five inches. The product is made of steel and is part of the SH series bushing. It's suitable for various mechanical applications.

• Made in the United States
• Interchangeable with other manufacturer's QD bushings
• Statically balanced for high performance

Product Highlights

This pulley is designed to meet industry guidelines. The precise machining ensures a consistent and high-quality finish. It is suitable for use in various mechanical power transmission setups.

Product Information

Standard Information

• Manufacturer: Martin
• Country Of Origin: United States
• Min Order Qty: 1

Technical Specifications

• Weight: 2.00 lbs
• Face Width: 1.5000 in
• Overall Width: 1.5 in
• Pitch Diameter: 3.6 in
• Outside Diameter: 3.6500 in
• Number Of Grooves: 3
• Bushing Bore Range: 0.5000 to 1.6875 in
• Length Through Bore: 1.3125 in
