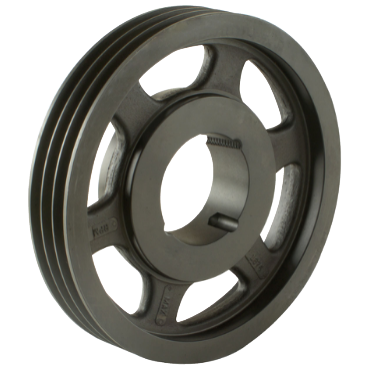

Martin 33V335TB 3V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 33V335TB is a 3V Series Hi-Cap Wedge Taper Bushed Sheave. This sheave is engineered to deliver superior performance while meeting the demands of various industrial applications. It features a robust design that ensures reliability and functionality over time.

• Compatible with both stock and custom QD and taper-bushed designs.
• Interchangeable with sheaves and bushings from other manufacturers.
• Statically balanced for smooth operation at rim speeds up to six thousand five hundred feet per minute.

Product Highlights

Designed to meet rigorous industry standards, this sheave accommodates a wide range of applications, maximizing your machinery's efficiency.

Product Information

Standard Information

• Brand: Martin
• MPN: 33V335TB

Technical Specifications

• Belt Size: 3V
• No. of Grooves: 3
• Outside Diameter: 3.35 inches
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 1.5 inches
• Material: Cast Iron
• Bushing Series: 1610
• Length Through Bore: 1 inch
• Type: Solid
