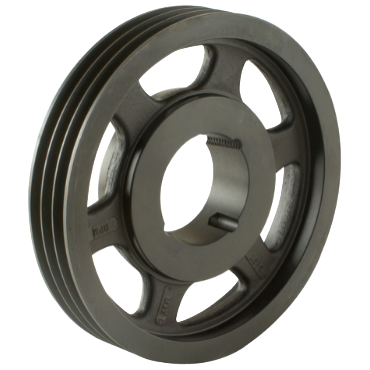

Martin 33V1400TB 3V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 33V1400TB is a 3V Series Hi-Cap Wedge Taper Bushed Sheave. This sheave is compatible with 3V belt sizes and is designed for high-performance applications. It features a taperlock bushing for easy installation and adjustment. The sheave has a pitch diameter of thirteen point ninety-five inches and an outside diameter of fourteen inches.

• 3V belt size compatible
• Taperlock design for simple mounting
• Constructed from cast iron for durability

Product Highlights

This sheave is ideal for industrial use, where robust performance is required. It is designed for rim speeds up to six thousand five hundred feet per minute and is statically balanced for reduced vibration during operation.

Product Information

Standard Information

• Brand: Martin
• MPN: 33V1400TB

Technical Specifications

• Bore Range (Min): 0.5 inches
• Bore Range (Max): 2.25 inches
• Number of Grooves: 3
• Face Width: 1.5 inches
• Weight: 25.0 pounds
• Material: Cast Iron
• Bushing Type: Taperlock
• Pitch Diameter: 13.95 inches
