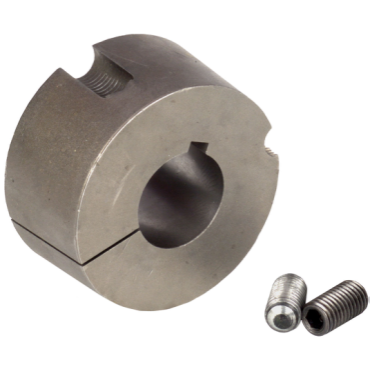

Martin 303027/16 Taper Lock Bushing - 2.4375 in Bore - 5/8 x 5/16 in Keyway

Product Description

The Martin Taper Lock Bushing, MPN 303027/16, is designed for effective power transmission. This bushing has a bore diameter of two point four three seven five inches and features a keyway size of five eighths by three sixteenths inches. It is made from cast iron material, making it suitable for various mechanical applications.

• Tapered design allows for direct clamping on the shaft.
• Integrates easily with sprockets, sheaves, and pulleys.
• Utilizes screws for enhanced grip and clamping force.

Product Highlights

Ideal for applications requiring a strong connection on rotating equipment. The tapered construction provides significant advantages in maintaining alignment and reducing wear.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Bore Diameter: 2.4375 inches
• Outside Diameter: 4.25 inches
• Length Through Bore: 3 inches
• Wrench Torque: 800 in/lb
• Screw Length: 1.25 inches
• Number of Bolt Holes: 2
• Max Hub Outside Diameter: 5.75 inches, 6.25 inches, 5.375 inches
• Bolt Circle Diameter: 4 inches
