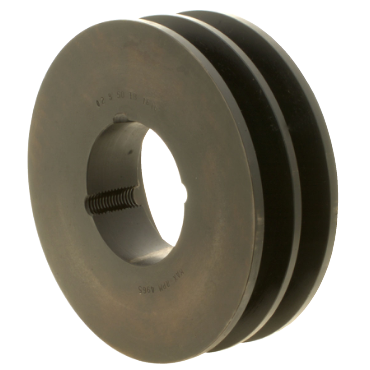

Martin 2B94TB A-B Series Combination Groove Conventional Taper Bushed Sheave

Product Description

The Martin 2B94TB is a combination groove conventional taper bushed sheave designed for use with A/B belt sizes. This sheave features a standard outside diameter of nine point seven five inches and comes with two grooves, making it suitable for various applications in mechanical power transmission.

• Interchangeable with other manufacturers' sheaves and bushings
• Statically balanced for rim speeds up to six thousand five hundred feet per minute
• Constructed from durable cast iron for longevity

Product Highlights

This sheave is engineered to meet industry standards, providing reliable performance for drive systems. Ideal for use in various machinery, it ensures smooth operation and efficient power transmission.

Product Information

Standard Information

• Brand: Martin
• MPN: 2B94TB

Technical Specifications

• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 2.5 inches
• Outside Diameter: 9.75 inches
• Number of Grooves: 2
• Bushing Type: Taperlock
• Weight: 18.0 lbs
• Material: Cast Iron
• Bushing Part Number: 2517
