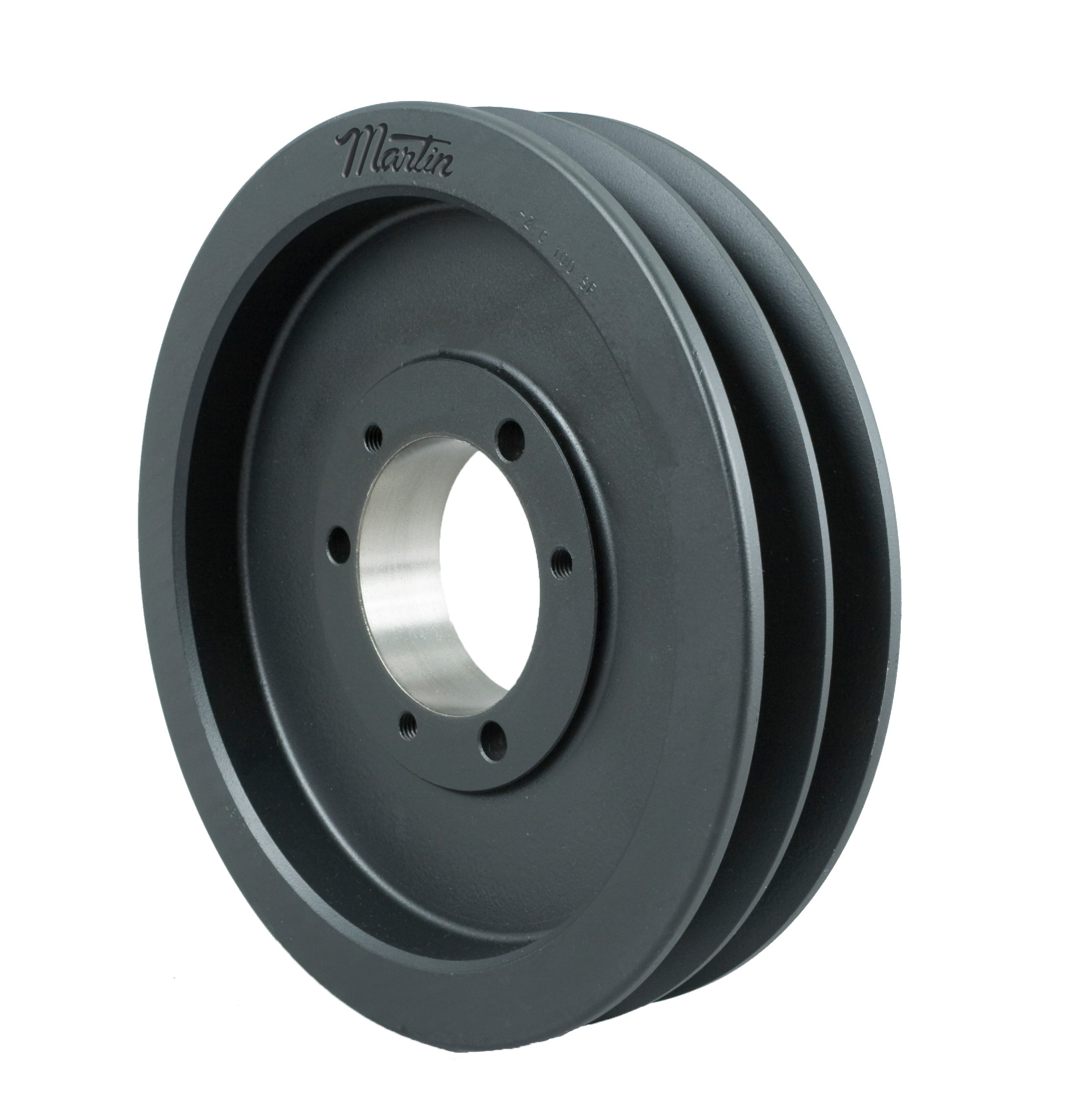

Martin 2B74SK 2 B 74 SK MSG Conventional QD Sheave

Product Description

Martin 2 B 74 SK MSG Conventional QD Sheave is designed for efficient power transmission. It features a bush bore size ranging from one-half to two and five-eighths inches. The outer diameter measures seven and three-fourths inches with a pitch diameter of seven point four inches. This sheave accommodates AB cross section V-belts.

• Constructed from class 30 gray iron
• Two grooves for better belt traction
• Statically balanced for stable operations

Product Highlights

This sheave is ideal for various industrial applications where reliable belt drive systems are required. Its design ensures a secure fit for V-belts while maintaining high performance.

Product Information

Standard Information

• Brand: Martin
• Manufacturer: Martin Sprocket & Gear

Technical Specifications

• Material: Cast Iron
• Bore Type: QD Bushed
• Bore Diameter: 1/2 to 2-5/8 in
• Overall Length: 2 in
• Outside Diameter: 7-3/4 in
• Pitch Diameter: 7.4 in
• Face Width: 1-3/4 in
• Number of Grooves: 2
• Suitable For Use With: AB Cross Section V-Belts
• Type: Type D-2 Web
