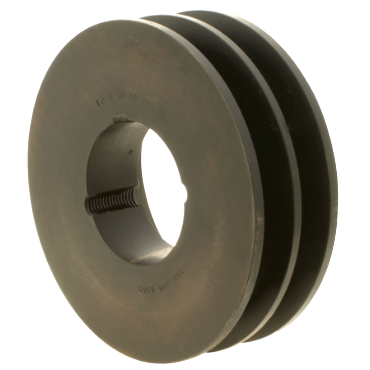

Martin 2B56TB A-B Series Combination Groove Conventional Taper Bushed Sheave

Product Description

The Martin 2B56TB is a combination groove conventional taper bushed sheave designed for V-belt applications. It is made with quality steel and meets the demands of various industrial settings. This sheave is suitable for both A and B belt sizes and features a taperlock bushing for secure mounting.

• Compatible with various manufacturers' sheaves and bushings
• Designed for rim speeds up to 6,500 feet per minute
• Bushed design allows flexibility in installation

Product Highlights

The Martin 2B56TB sheave is statically balanced for consistent performance. It features a durable design suitable for heavy-duty applications.

Product Information

Standard Information

• Brand: Martin
• MPN: 2B56TB

Technical Specifications

• Bushing Series: 1610
• Pitch Diameter: 5.6 inches
• Bore Range [Max]: 1.5 inches
• Bore Range [Min]: 0.5 inches
• Outside Diameter: 5.95 inches
• Number of Grooves: 2
• Weight: 6.5 pounds
• Material: Steel
