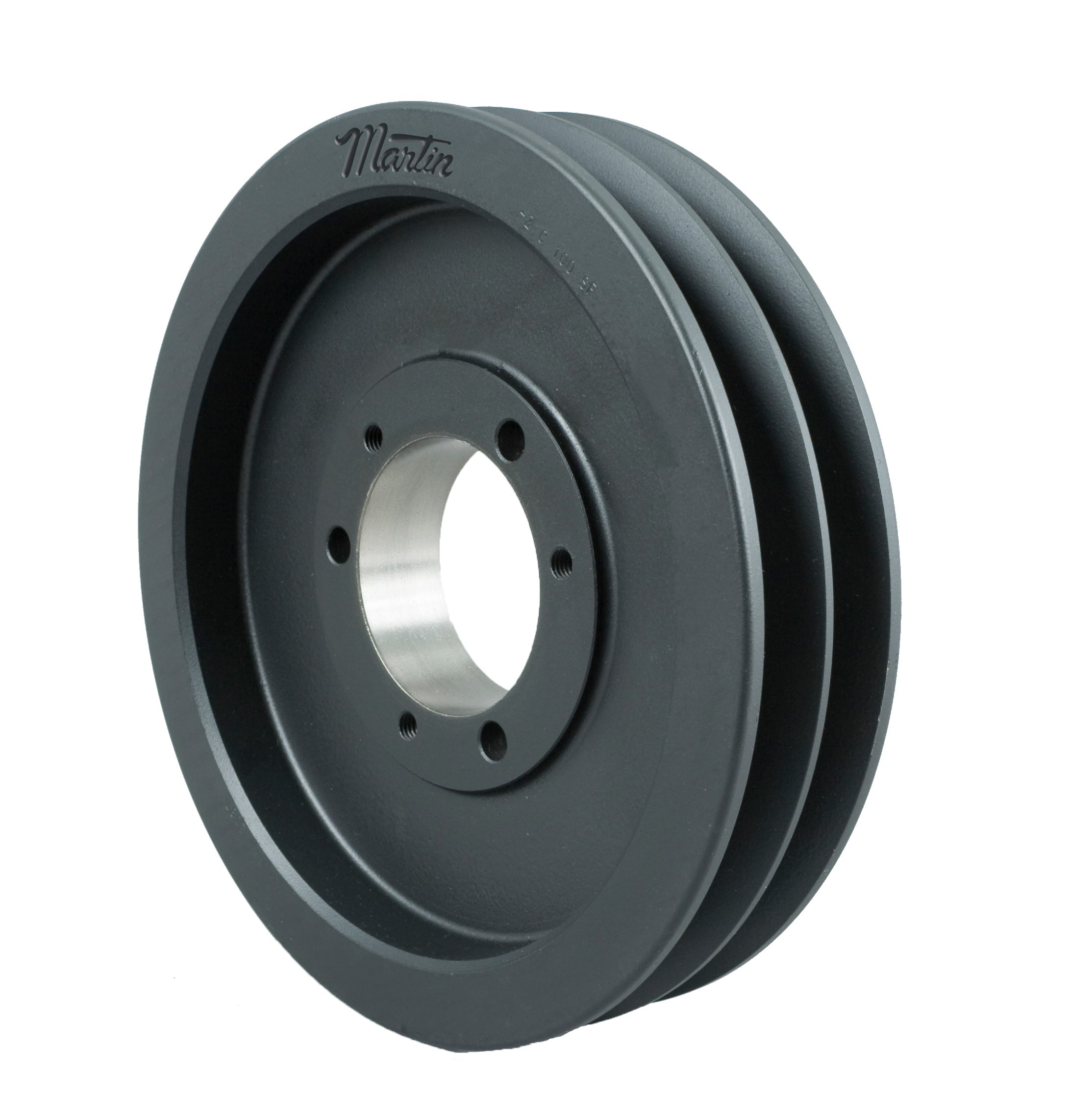

Martin 2B54SDS Solid Type A-2 QD Bushed Sheave

Product Description

The Martin 2B54SDS is a Solid Type A-2 Conventional Sheave. It features a QD Bushed Bore ranging from one half to two inches. The outside diameter is five and three fourths inches with a pitch diameter of five point four inches. This sheave includes two grooves and has a face width of one and three fourths inches, making it suitable for A and B cross-section belts.

• Manufactured from class 30 gray iron with a tensile strength of thirty thousand psi.
• Statically balanced for reliable performance.
• Provides high-speed functionality with a maximum speed capability of six thousand five hundred feet per minute.

Product Highlights

The sheave is designed for use with standard A and B cross-section belts. It is ideal for applications requiring durability and efficiency in power transmission.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Type: Solid Type A-2

Technical Specifications

• Material: Steel
• Bore Type: QD Bushed
• Bore Diameter: 1/2 to 2 in
• Outside Diameter: 5-3/4 in
• Pitch Diameter: 5.4 in
• Face Width: 1-3/4 in
• Overall Length: 1-3/4 in
• Number of Grooves: 2
• Suitable For Use With: A, B Cross Section Belts
