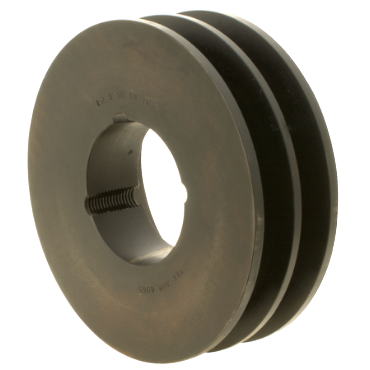

Martin 2B46TB A-B Series Combination Groove Conventional Taper Bushed Sheave

Product Description

The Martin 2B46TB A-B Series is a conventional taper bushed sheave made for A and B belt sizes. It features a two groove design and a pitch diameter of four point six inches. The outer diameter is four point nine five inches, suitable for various applications.

• A/B belt size compatible
• Constructed from durable steel
• Statically balanced for high speeds

Product Highlights

This component is designed for easy interchangeability with other manufacturers' sheaves and bushings, meeting industry standards for quality and performance.

Product Information

Standard Information

• Brand: Martin
• MPN: 2B46TB

Technical Specifications

• Bore Range [Min]: 0.5 in
• Bore Range [Max]: 1.5 in
• Material: Steel
• No. of Grooves: 2
• Face Width: 1.75 in
• Type: Solid
• Weight: 4.2 lbs
• Overall Length: 1.75 in
• Outside Diameter: 4.95 in
• Pitch Diameter: 4.6 in
