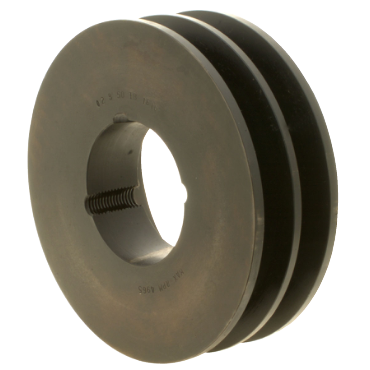

Martin 2B42TB A-B Series Combination Groove Conventional Taper Bushed Sheave

Product Description

The Martin 2B42TB is a combination groove conventional taper bushed sheave suitable for many industrial applications. This sheave has been designed for use with A and B belt sizes, providing versatility across multiple systems.

• Compatible with multiple manufacturers' sheaves and bushings.
• Constructed with high-quality steel for durability.
• Designed for rim speeds of up to 6,500 feet per minute.

Product Highlights

The Martin sheave features a taperlock bushing for easy installation and reliable performance. Its precision manufacturing ensures a consistent finish and adherence to industry standards.

Product Information

Standard Information

• Brand: Martin
• MPN: 2B42TB

Technical Specifications

• Length Through Bore: 1 inch
• No. of Grooves: 2
• Bushing Mount: Standard
• Outside Diameter: 4.55 inches
• B (5L) Pitch Dia.: 4.2 inches
• Belt Match: 1, 2
• Bushing Part Number: 1610
• Type: Solid
• Overall Length: 1.75 inches
• Bushing Type: Taperlock
• Bore Range [Max]: 1.5 inches
• Bore Range [Min]: 0.5 inches
• Weight: 3.3 LB
• EAN or UPC: 697950153742
