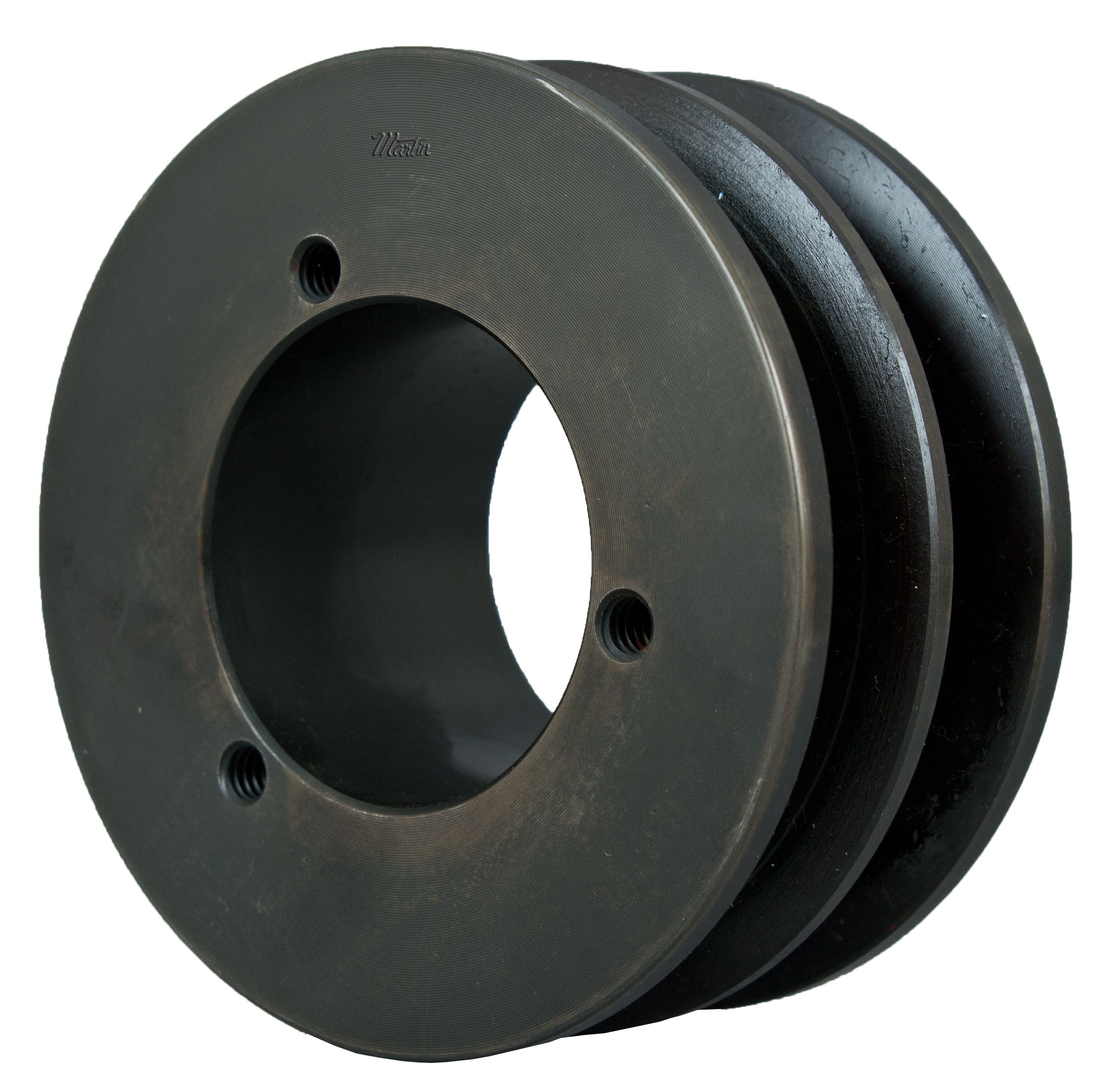

Martin 2B42SH Solid Type A-1 Conventional Sheave 0.5 to 1.688 in QD® Bushed

Product Description

Martin 2B42SH is a solid type A-1 conventional sheave designed for optimal performance in power transmission systems. This sheave features a bore diameter range from half an inch to one point six eight eight inches with a robust construction using class 30 gray iron. The outer diameter measures four point five five inches and it has two grooves with a pitch diameter of four point two inches. This sheave is suitable for use with A and B cross-section belts, making it versatile for various applications.

• Constructed from class 30 gray iron.
• Maximum speed of six thousand five hundred feet per minute.
• Statically balanced to ensure smooth operation.

Product Highlights

This sheave provides reliable performance and efficiency in belt drive systems.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• MPN: 2B42SH

Technical Specifications

• Bore Diameter: 0.5 to 1.688 in
• Bore Type: QD® Bushed
• Bushing Type: SH
• Face Width: 1-3/4 in
• Overall Length: 1-3/4 in
• Pitch Diameter: 4.2 in
• Outside Diameter: 4.55 in
• Number of Grooves: 2
• Material: Steel
• Suitable For Use With: A, B Cross Section Belts
• Country of Origin: US
• Type: Solid Type A-1
