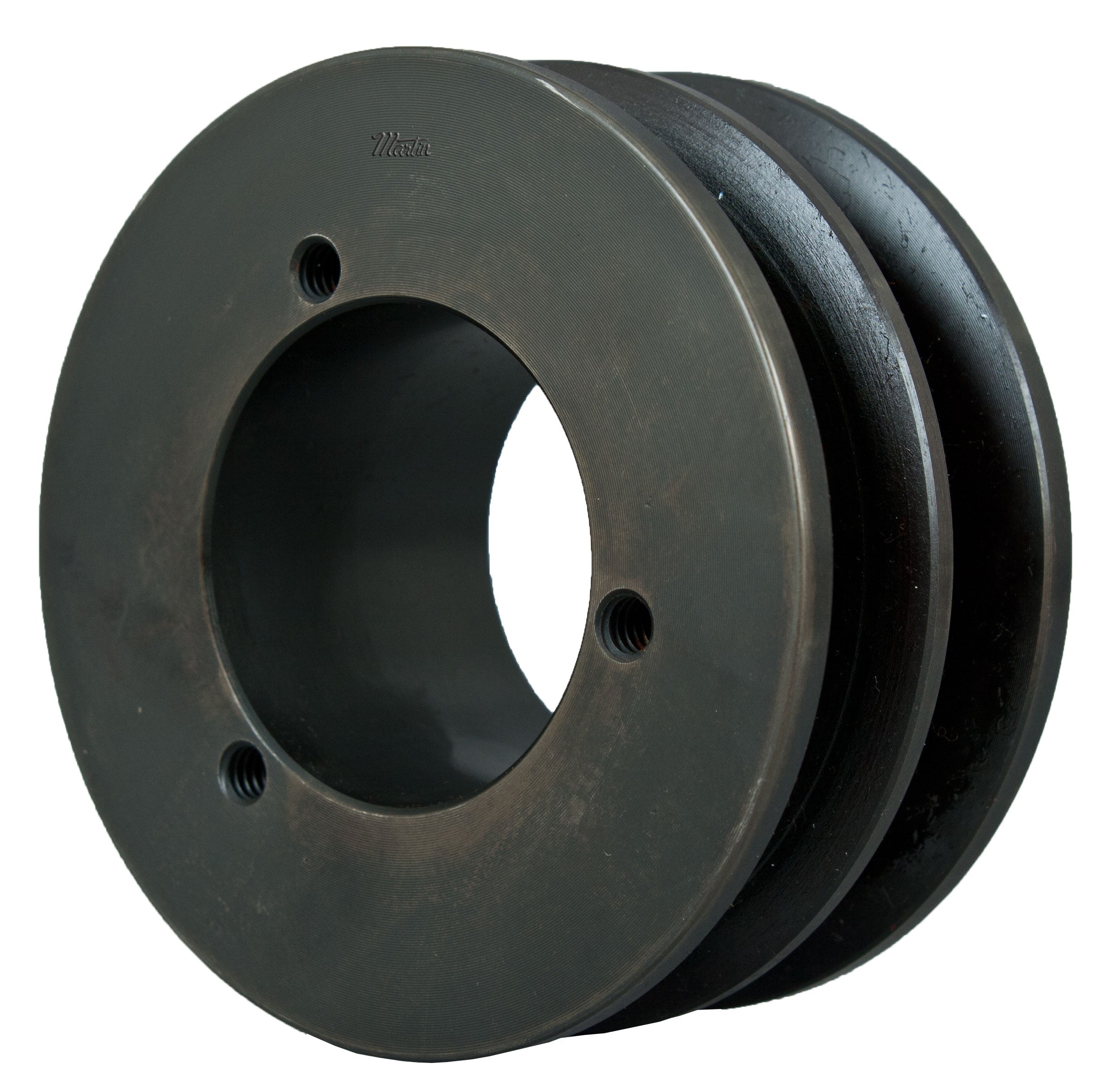

Martin 2B34SH 2 B 34 SH Solid Type E-1 0.5 to 1.688 in QD Bushed Bore

Product Description

The Martin 2 B 34 SH is a solid type E-1 conventional sheave designed for use with QD bushings. This sheave accommodates bore diameters ranging from half an inch to one and six hundred eighty-eight thousandths of an inch. It has an outside diameter of three and three-quarters inches and includes two grooves. The pitch diameter is three and four-tenths inches with a face width of one and three-quarters inches.

• Manufactured from class 30 gray iron
• Statically balanced for consistent performance
• For use with A and B cross-section belts

Product Highlights

This Martin sheave is suitable for setups requiring high tensile strength and precision. It is ideal for applications involving belt drives.

Product Information

Standard Information

• Manufacturer: Martin Sprocket & Gear
• Type: Solid Type E-1

Technical Specifications

• Material: Steel
• Bore Type: QD Bushed
• Bore Diameter: 0.5 to 1.688 in
• Overall Length: 2.31 in
• Pitch Diameter: 3.4 in
• Outside Diameter: 3-3/4 in
• Face Width: 1-3/4 in
• Number of Grooves: 2
• Suitable for Use With: A, B Cross Section Belts
