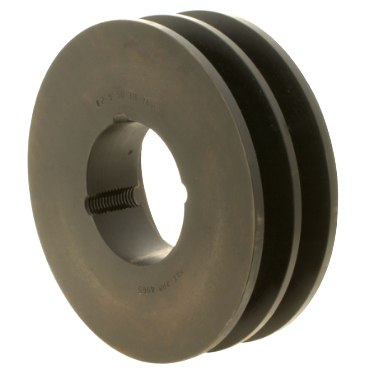

Martin 2B124TB A-B Series Combination Groove Conventional Taper Bushed Sheave

Product Description

The Martin 2B124TB is an A-B Series Combination Groove Conventional Taper Bushed Sheave designed to meet the demands of various industrial applications. It features a robust build, capable of interchanging with other manufacturers’ sheaves and bushings. This sheave is suitable for rim speeds of up to 6,500 feet per minute, making it reliable for high-speed operations.

• Interchangeable with other manufacturers' sheaves and bushings
• Statically balanced for high rim speeds
• Compatible with A and B belt sizes

Product Highlights

The Martin 2B124TB sheave is made from cast iron, providing durability and long-lasting performance. It has a 12.75-inch outside diameter and is designed for a minimum bore range of 0.5 inches and a maximum bore range of 2.5 inches.

Product Information

Standard Information

• Brand: Martin
• MPN: 2B124TB

Technical Specifications

• Bushing Series: 2517
• No. of Grooves: 2
• Bore Type: Bushed
• Pitch Diameter: 12.4 inches
• Overall Length: 1.75 inches
• Material: Cast Iron
• Outside Diameter: 12.75 inches
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 2.5 inches
• Weight: 18.0 lbs
