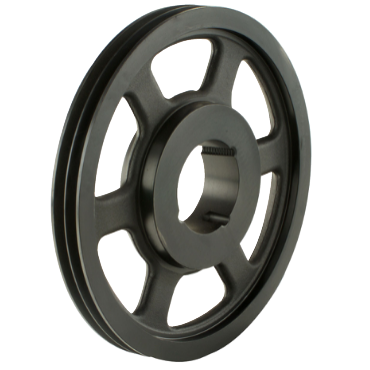

Martin 25V925TB 5V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 25V925TB is a 5V series hi-cap wedge taper bushed sheave designed for industrial applications. This product is compatible with various V-belts and features 2 grooves with an outside diameter of nine point twenty-five inches. The taperlock bushing allows for easy installation and adjustment.

• Compatible with 5V belt size
• Constructed from durable cast iron
• Suitable for rim speeds up to six thousand five hundred feet per minute

Product Highlights

The Martin 25V925TB sheave is statically balanced and designed for high-performance applications. It is ideal for use in machinery and equipment requiring reliable power transmission systems.

Product Information

Standard Information

• Brand: Martin
• MPN: 25V925TB

Technical Specifications

• Belt Size: 5V
• Outside Diameter: 9.25 inches
• Bore Range [Min]: 0.937 inches
• Bore Range [Max]: 3 inches
• No. of Grooves: 2
• Material: Cast Iron
• Pitch Diameter: 9.15 inches
• Weight: 17.0 lbs
