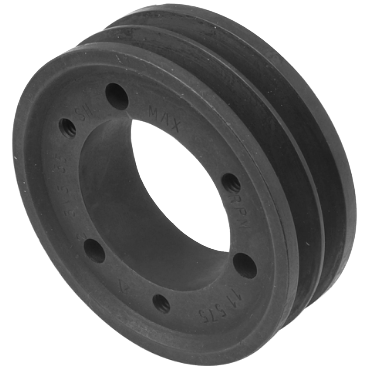

Martin 25V670SK Bushing Bore V-Belt Pulley 5V Belt Section 6.6 in Pitch Dia. 6.7 in O.D. SK Series Bushing

Product Description

The Martin 25V670SK is a bushing bore V-belt pulley designed specifically for the 5V belt section. This pulley features two grooves with a pitch diameter of six point six inches and an outside diameter of six point seven inches. It is made of cast iron, ensuring durability and efficiency as it transfers power.

• Compatible with other manufacturer's QD bushings
• Class thirty gray iron construction
• Statically balanced for maximum rim speed

Product Highlights

This pulley provides precise machining that results in a consistent finish and high quality, making it suitable for various mechanical power transmission applications.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Weight: 8.70 lbs
• Face Width: 1.6875 in
• Overall Width: 1 11/16 in
• Pitch Diameter: 6.6 in
• Outside Diameter: 6.7000 in
• Number of Grooves: 2
• Bushing Bore Range: 0.5000 to 2.6250 in
• Length Through Bore: 1.9375 in
