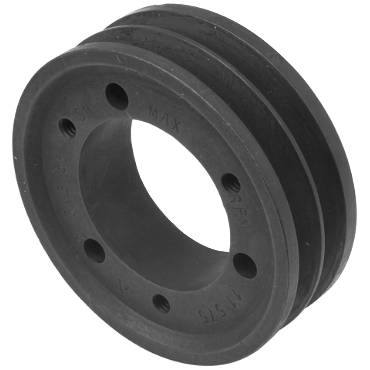

Martin 25V550SDS Bushing Bore V-Belt Pulley - 5V Belt Section, 2 Groove, 5.4 in Pitch Dia., 5.5 in O.D., Bushed, SDS Series Bushing

Product Description

The Martin 25V550SDS Bushing Bore V-Belt Pulley is designed for use with 5V belt sections. This pulley features two grooves and has a pitch diameter of five point four inches, as well as an outside diameter of five point five inches. It is made of cast iron material and is part of the SDS series, allowing compatibility with standard QD bushings.

• Made from class 30 gray iron
• Precise machining for a consistent finish
• Interchangeable with other manufacturers' QD bushings

Product Highlights

This product is statically balanced and marked to indicate maximum rim speed, ensuring reliable performance in industrial applications.

Product Information

Standard Information

• Manufacturer: Martin
• Country Of Origin: United States

Technical Specifications

• Weight: 5.2, 4.60 lbs
• Face Width: 1.6875 in
• Overall Width: 1 11/16 in
• Bushing Series: SDS
• Pitch Diameter: 5.4 in
• Outside Diameter: 5.5000 in
• Number Of Grooves: 2
• Bushing Bore Range: 0.5000 to 2.0000 in
• Length Through Bore: 1.375 in
