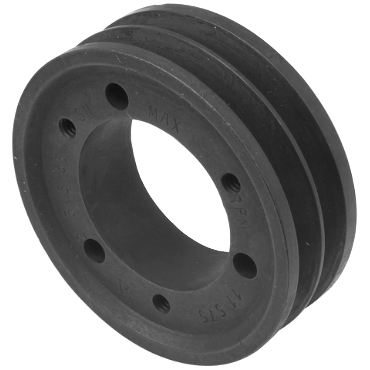

Martin 25V1600SF Bushing Bore V-Belt Pulley - 5V Belt Section, 2 Groove, 15.9 in Pitch Dia., 16 in O.D., Bushed, SF Series Bushing

Product Description

The Martin 25V1600SF is a reliable bushing bore V-belt pulley designed for use in various mechanical power transmission applications. Constructed from cast iron, this pulley features a five-volt belt section and a two-groove design. It has a pitch diameter of fifteen point nine inches and an outside diameter of sixteen inches. This product is compatible with SF series bushings and has been manufactured with high precision for optimal performance.

• Interchangeable with various manufacturer's QD bushings.
• Constructed from class thirty gray iron.
• Statically balanced to ensure smooth operation at high speeds.

Product Highlights

The Martin 25V1600SF is engineered to meet industry guidelines, ensuring quality and durability. Ideal for projects requiring reliable power transmission solutions.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• MPN: 25V1600SF
• Material: Cast Iron
• Pitch Diameter: 15.9 in
• Outside Diameter: 16.0000 in
• Number of Grooves: 2
• Belt Section Size: 5V
• Bushing Bore Range: 0.5000 to 2.9375 in
• Face Width: 1.6875 in
• Overall Width: 1 11/16 in
• Length Through Bore: 2.0625 in
• Mounting Type: Reversible
• Storage Dimension Width: 16.525 in
• Storage Dimension Height: 1.875 in
• Storage Dimension Length: 16.525 in
