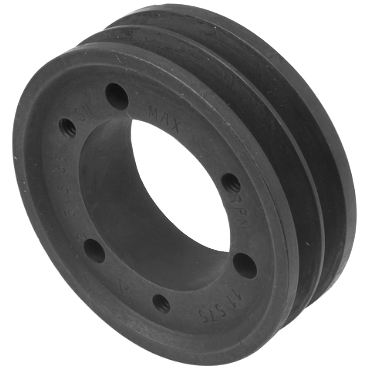

Martin 25V1320SF Bushing Bore V-Belt Pulley - 5V Belt Section, 2 Groove, 13.1 in Pitch Dia. + 00540

Product Description

The Martin 25V1320SF is a bushing bore V-belt pulley designed for use with 5V belt sections. This product features two grooves and has a pitch diameter of thirteen point one inches. The outer diameter measures thirteen point two inches, and it is made from cast iron material. Ideal for mechanical power transmission applications, this pulley combines durability with efficient performance.

• Interchangeable with other manufacturers' taper bushings
• Meets industry tolerances and specifications
• Statically balanced for low vibration

Product Highlights

This pulley is suitable for various industrial applications requiring reliable and effective power transmission.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Weight: 20.00 lbs
• Material: Cast Iron
• Bore Type: Bushed
• Face Width: 1.6875 in
• Pitch Diameter: 13.1 in
• Outside Diameter: 13.2000 in
• Belt Section Size: 5V
• Number Of Grooves: 2
