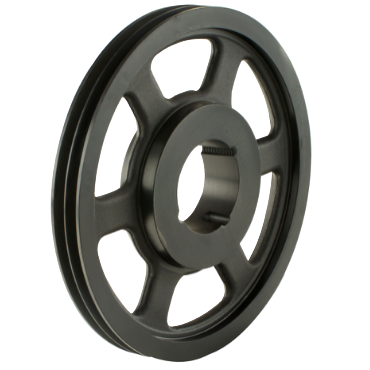

Martin 25V1030TB 5V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

Martin 25V1030TB is a sheave designed to meet the needs of various industrial applications. This sheave is part of the 5V Series, which features a wedge taper bushing system for secure attachment. The outer diameter of this sheave is 10.3 inches, and it is suitable for 5V belt sizes. It is ideal for systems that require reliability and high performance.

• Compatible with other manufacturers' sheaves and bushings
• Maximum rim speed of 6,500 feet per minute
• Made from durable cast iron

Product Highlights

This sheave is designed for high-performance applications and provides excellent tension and stability.

Product Information

Standard Information

• Brand: Martin
• MPN: 25V1030TB

Technical Specifications

• Belt Size: 5V
• Number of Grooves: 2
• Outside Diameter: 10.30 inches
• Pitch Diameter: 10.2 inches
• Bushing Type: Taperlock
• Bore Range (Min): 0.937 inches
• Bore Range (Max): 3 inches
• Material: Cast Iron
• Weight: 22 pounds
• Bushing Series: 3020
