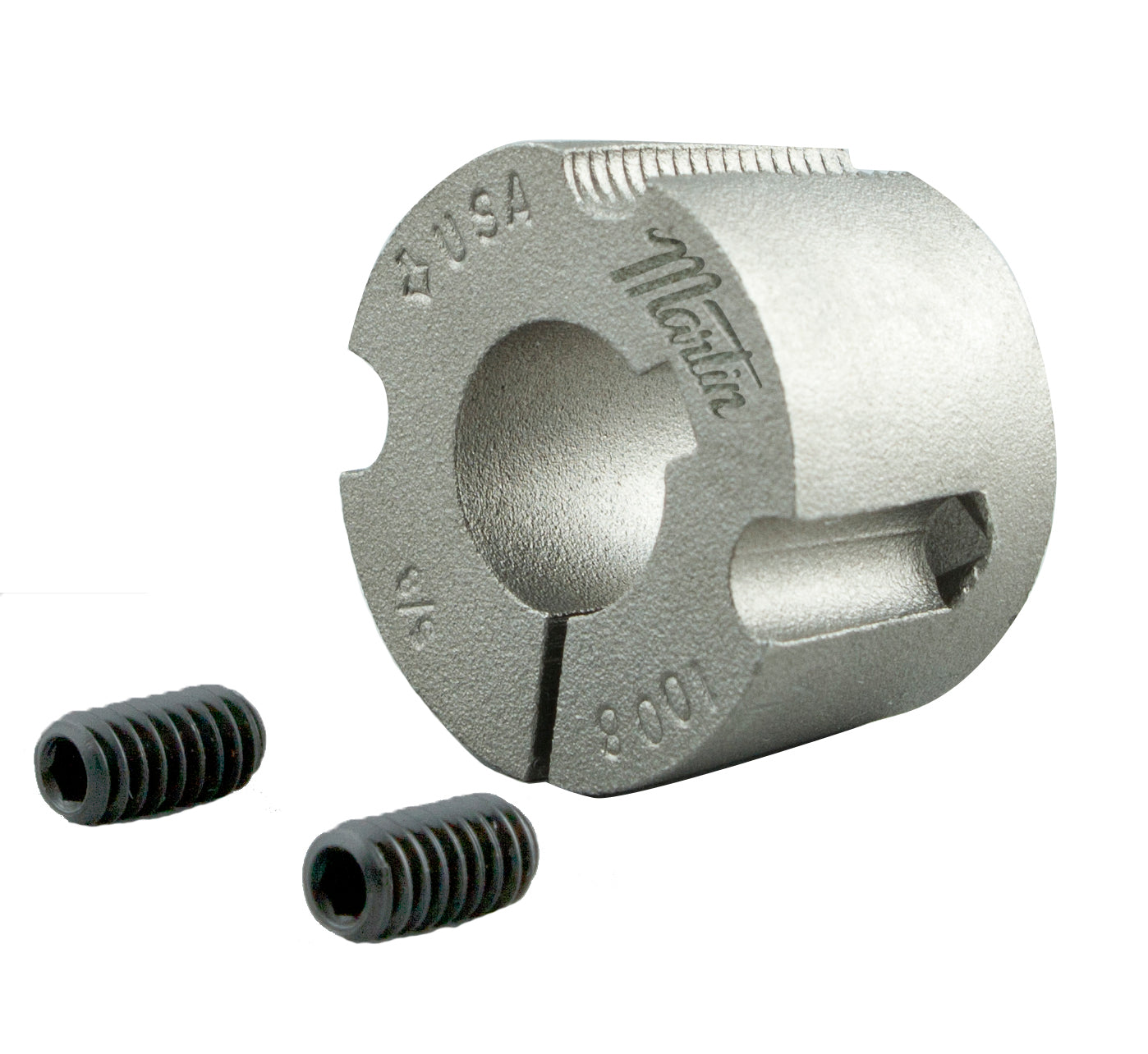

Martin 251727/16 Taper Lock Bushing 2-7/16 in Dia Bore 3-3/8 in Dia Barrel

Product Description

The Martin Taper Lock Bushing with MPN 251727/16 features a bore diameter of two and seven-sixteenths inches. This standard taper lock bushing is designed for effective power transmission. It is made of steel, ensuring durability and strength in various applications.

• Bore diameter: 2-7/16 inches
• Barrel diameter: 3-3/8 inches
• Torque rating: 11600 inch-pounds

Product Highlights

This product offers precise machining, making it reliable for industrial use. It meets or exceeds industry standards to ensure a consistent finish and long life.

Product Information

Standard Information

• Brand: Martin
• Type: Standard Taper Lock
• Material: Steel

Technical Specifications

• Bore diameter: 2-7/16 inches
• Barrel diameter: 3-3/8 inches
• Hub diameter: 4-3/8 inches
• Taper: 8 degrees
• Overall length: 1-3/4 inches
• Screw size: 1/2-13 x 1 inches
• Keyway size: 5/8 x 3/16 inches
• Number of bolt holes: 2
• Bolt circle diameter: 3-1/4 inches
• Torque rating: 11600 inch-pounds
• Country of origin: US
