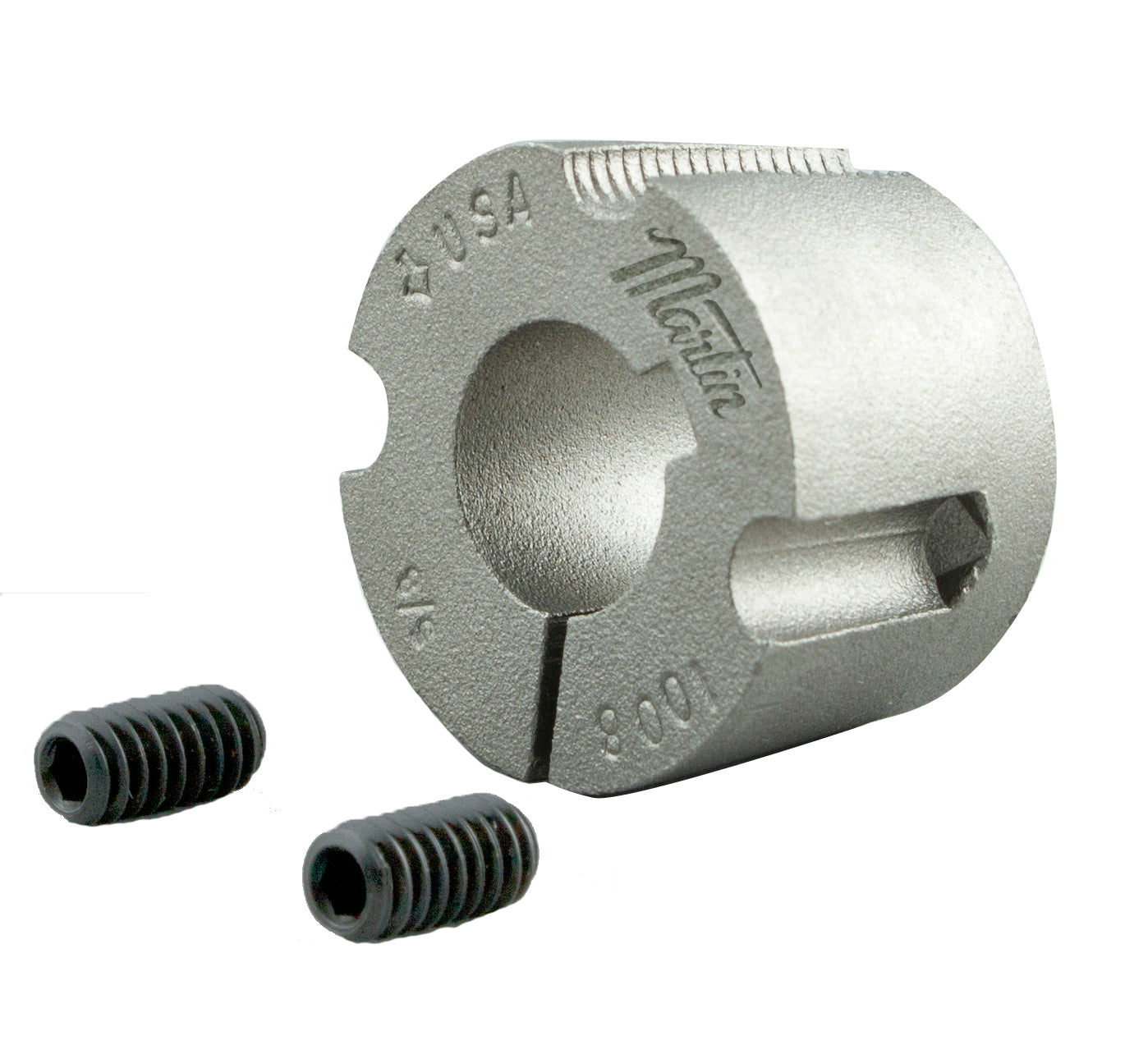

Martin 251715/8 2517 1 5/8 Standard Taper Lock Bushing

Product Description

Martin 251715/8 is a Taper Lock Bushing designed for use in various industrial applications. It features a one and five-eighths inch bore diameter, with a three and three-eighths inch barrel diameter. This bushing is made of steel, ensuring durability and reliability in power transmission setups. It operates with an eight-degree taper and has a torque rating of eleven thousand six hundred inch-pounds.

• Size 2517 bushing
• TB Bushings designed for flush mounting
• Interchangeable with other manufacturers' taper bushings

Product Highlights

Martin taper lock bushings are engineered for precision and consistent performance. Their design supports effective power transmission in various machinery.

Product Information

Standard Information

• Manufacturer: Martin Sprocket & Gear
• Part Number: 2517 1 5/8

Technical Specifications

• Bore Diameter: 1-5/8 in
• Barrel Diameter: 3-3/8 in
• Hub Diameter: 4-3/8 in
• Taper: 8 deg
• Overall Length: 1-3/4 in
• Torque Rating: 11600 in-lb
• Screw Size: 1/2-13 x 1 in
• Keyway Size: 3/8 x 3/16 in
• Bolt Circle Diameter: 3-1/4 in
• Number of Bolt Holes: 2
• Material: Steel
• Standards/Approvals: ANSI B15.1
