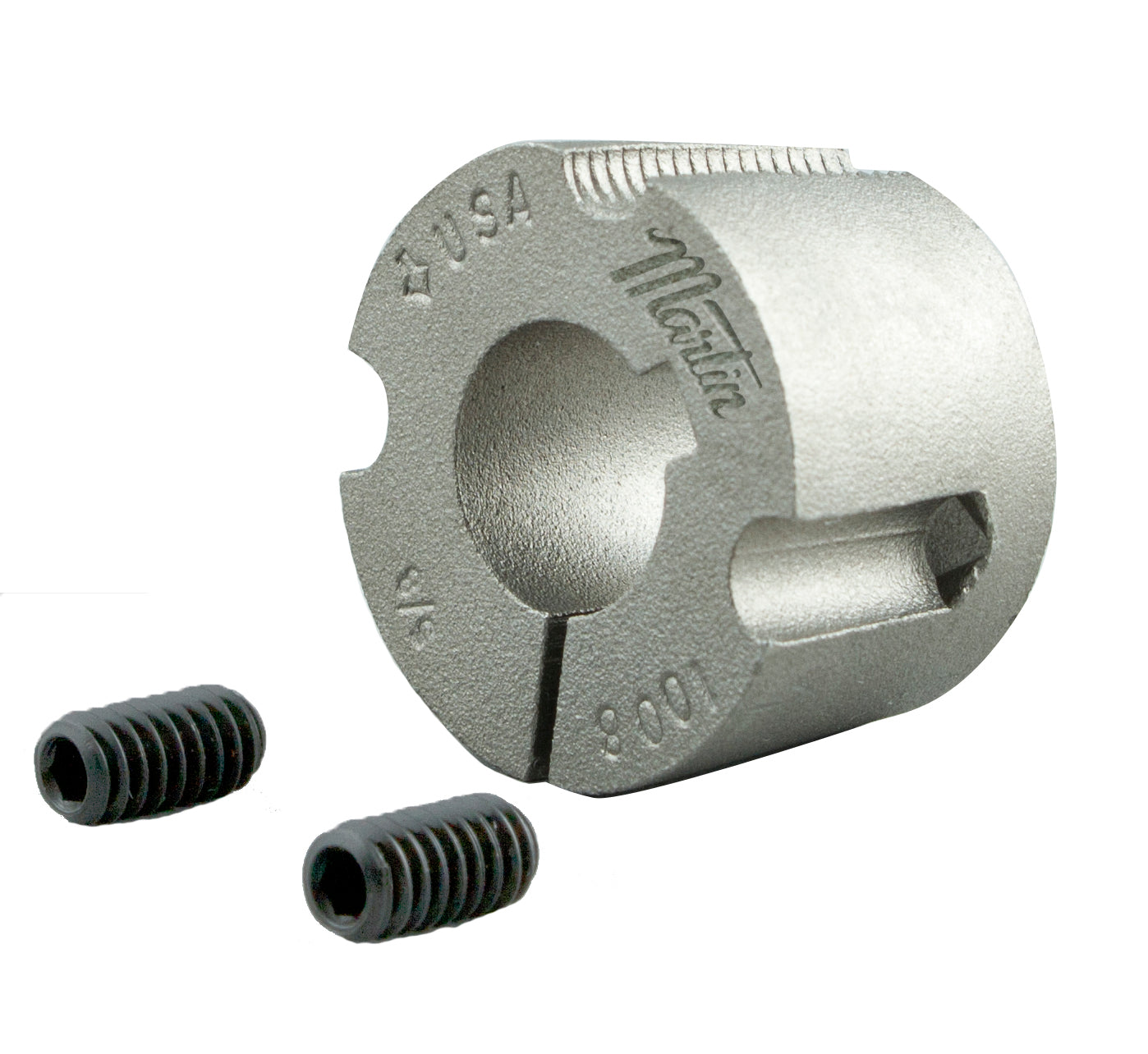

Martin 2517115/16 Standard Taper Lock Bushing

Product Description

The Martin 2517115/16 is a standard taper lock bushing designed for use in power transmission applications. This bushing has a bore diameter of one and fifteen-sixteenths inches and a barrel diameter of three and three-eighths inches. The overall length is one and three-fourths inches. It is made of steel and suitable for flush mounting.

• Precision machining for high-quality performance
• Compatible with various taper bushings
• Designed to meet ANSI B15.1 standards

Product Highlights

The Martin 2517115/16 taper lock bushing provides a reliable connection in belt drives, pulleys, and sheaves.

Product Information

Standard Information

• Brand: Martin
• Manufacturer: Martin Sprocket & Gear

Technical Specifications

• Bore Diameter: 1-15/16 in
• Barrel Diameter: 3-3/8 in
• Overall Length: 1-3/4 in
• Hub Diameter: 4-3/8 in
• Taper: 8 deg
• Torque Rating: 11600 in-lb
• Screw Size: 1/2-13 x 1 in
• Keyway Size: 1/2 x 1/4 in
• Number of Bolt Holes: 2
• Bolt Circle Diameter: 3-1/4 in
• Material: Steel
