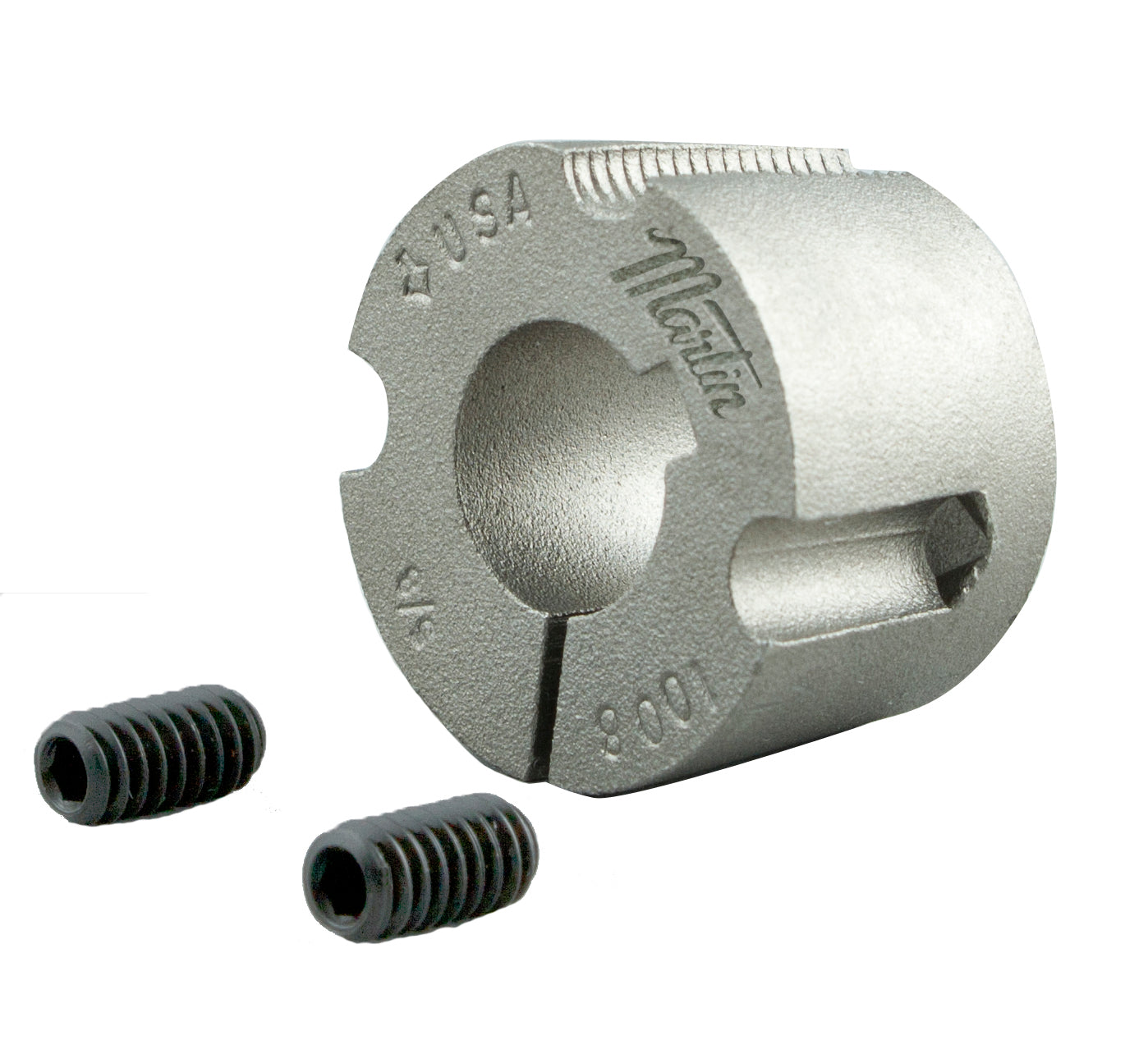

Martin 25171 Standard Taper Lock Bushing 1 in Dia Bore 3-3/8 in Dia Barrel

Product Description

The Martin 2517 1 MSG is a standard taper lock bushing designed for various applications. This bushing features a one inch bore diameter and a three and three-eighths inch barrel diameter. It is made from steel and designed for durability and longevity in operation.

• Standard taper lock design
• Compatible with various shaft sizes
• Manufactured to meet ANSI B15.1 standards

Product Highlights

This product is ideal for use in power transmission systems, ensuring efficient and secure connections.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Type: Standard Taper Lock Bushing

Technical Specifications

• Manufacturer Part Number: 25171
• Bore Diameter: 1 in
• Barrel Diameter: 3-3/8 in
• Hub Diameter: 4-3/8 in
• Overall Length: 1-3/4 in
• Torque Rating: 11600 in-lb
• Taper: 8 deg
• Screw Size: 1/2-13 x 1 in
• Keyway Size: 1/4 x 1/8 in
• Number of Bolt Holes: 2
• Bolt Circle Diameter: 3-1/4 in
• Material: Steel
• Country of Origin: US
