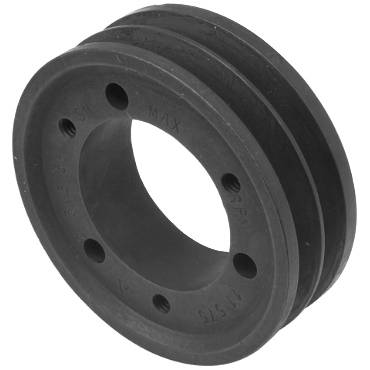

Martin 23V530SH Bushing Bore V-Belt Pulley - 3V Belt Section, 2 Groove, 5.25 in Pitch Dia., 5.3 in O.D.

Product Description

The Martin 23V530SH is a bushing bore V-belt pulley designed for the 3V belt section. This pulley features a two-groove design with a pitch diameter of five point twenty-five inches and an outside diameter of five point three inches. Constructed from durable steel, it is suited for various mechanical power transmission applications.

• Interchangeable with other manufacturer’s QD bushings.
• Manufactured with Class 30 Gray Iron for strength.
• Statically balanced to ensure stability during operation.

Product Highlights

This pulley is precision-machined for consistent performance and meets industry guidelines for tolerances.

Product Information

Standard Information

• Category: Mechanical Power Transmission
• Brand: Martin

Technical Specifications

• MPN: 23V530SH
• Bushing Series: SH
• Number of Grooves: 2
• Pitch Diameter: 5.25 inches
• Outside Diameter: 5.3000 inches
• Face Width: 1.0938 inches
• Length Through Bore: 1.3125 inches
• Bushing Bore Range: 0.5000 to 1.6875 inches
• Weight: 4.675 pounds
