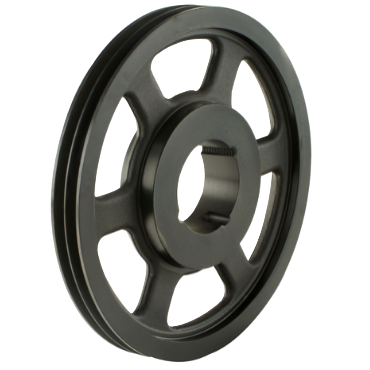

Martin 23V300TB Bushing Bore V-Belt Pulley - 3V Section, 2 Groove, 2.95 in Pitch Dia., 3 in O.D., Bushed, 1210 Series Bushing

Product Description

The Martin 23V300TB is a bushing bore V-belt pulley designed for 3V belt sections. It features a shaft diameter of three inches and has two grooves. This pulley accommodates a bore range from half an inch to one and a quarter inches using a taperlock bushing method.

• Constructed with durable cast iron.
• Statically balanced for smooth operations.
• Designed for rim speeds up to six thousand five hundred feet per minute.

Product Highlights

This Martin pulley is applicable in various mechanical power transmission systems and is ideal for use in industries requiring reliable and robust performance.

Product Information

Standard Information

• Brand: Martin
• Part Number: 23V300TB

Technical Specifications

• Bushing Part Number: 1210
• Bore Range [Max]: 1.25 in
• Bore Range [Min]: 0.5 in
• Bushing Mount: Standard
• 3V Pitch Dia.: 2.95 in
• Material: Cast Iron
• Bushing Series: 1210
• Belt Match: 1, 2
• Overall Length: 1.09 in
• Length Through Bore: 1 in
• Outside Dia.: 3.00 in
• No. of Grooves: 2
• Inch/Metric: Inch
• Type: Solid
• Belt Size: 3V
• Weight: 1.4 LB
