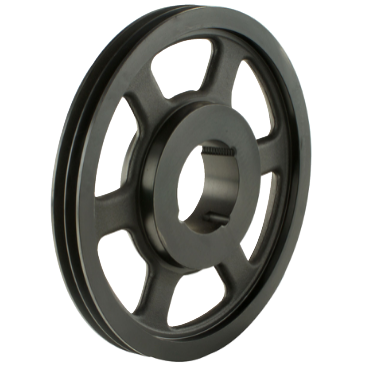

Martin 23V280TB 3V Series Hi-Cap Wedge Taper Bushed Sheave

Product Description

The Martin 23V280TB is a 3V Series Hi-Cap Wedge Taper Bushed Sheave designed to meet industry demands. This component fits various applications requiring reliable performance and is compatible with other manufacturers' bushings.

• Statically balanced for high-speed use
• Compatible with Taperlock bushings
• Sheave size range from two point six inches to eighty-eight inches in diameter

Product Highlights

The Martin 23V280TB provides durability and efficiency in power transmission applications. It is designed for rim speeds up to six thousand five hundred feet per minute, making it suitable for demanding environments.

Product Information

Standard Information

• Brand: Martin
• MPN: 23V280TB

Technical Specifications

• Belt Size: 3V
• Bore Type: Bushed
• Material: Cast Iron
• Outside Diameter: 2.80 inches
• Pitch Diameter: 2.75 inches
• No. of Grooves: 2
• Bushing Series: 1108
• Bore Range [Max]: 1.125 inches
• Bore Range [Min]: 0.5 inches
• Length Through Bore: 0.875 inches
• E (Knuckle Width): 0.21875 inches
• Weight: 0.9 pounds
• EAN or UPC: 697950154121
