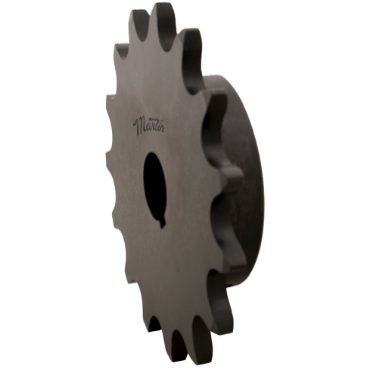

Martin 2082B12 Double Pitch Stock Bore Sprockets - 2 in B Hub 12 Teeth 1.0000 in Stock Bore

Product Description

The Martin 2082B12 is a double pitch stock bore sprocket designed for efficiency in power transmission systems. It features a stock bore of one inch and is constructed from high carbon steel to guarantee strength and durability. This sprocket is compatible with double pitch roller chains and operates effectively within various mechanical settings.

• Constructed from high carbon steel
• Features a stock bore of one inch
• Compatible with double pitch roller chains

Product Highlights

The double pitch design allows for engaging every other tooth. This design promotes extended lifespan and improved operational efficiency.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• Hub Type: B
• Bore Diameter: 1.0000 in
• Bore Range: 1 to 2.75 in
• Number Of Teeth: 12
• Pitch Type: Double
• Tooth Thickness: 0.5750 in
• Outside Diameter: 8.6600 in
• Pitch Diameter: 7.7274 in
• Chain Number & Pitch: 2082 / 2 in
