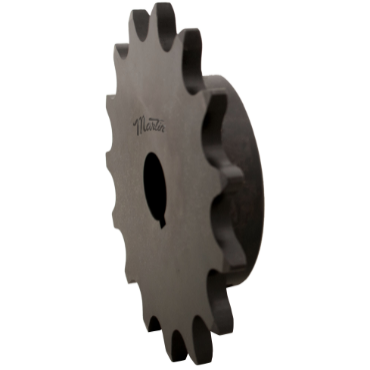

Martin 2082B11 Double Pitch Stock Bore Sprockets - 2 in B Hub 11 Teeth 1.0000 in Stock Bore

Product Description

The Martin 2082B11 is a double pitch stock bore sprocket designed for efficiency and durability. It features a two-inch B hub and eleven teeth. The bore diameter is one inch, making it compatible with various applications.

• Double pitch design for increased longevity
• Manufactured from high carbon steel
• Precise machining ensures quality and consistency

Product Highlights

This sprocket is ideal for use with double pitch chains. Its design allows for engagement by every other tooth, which helps extend the life of the sprocket.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 2082B11
• Hub Type: B
• Bore Diameter: 1.0000 in
• Maximum Bore Diameter: 2.7500 in
• Pitch Type: Double
• Number Of Teeth: 11
• Tooth Width: 0.575 in
• Support For Chain Number & Pitch: 2082 / 2 in
• Pitch Diameter: 7.0989 in
• Outside Diameter: 8.0100 in
• Hub Outside Diameter: 4.2500 in
• Hub Diameter: 4-1/4 in
• Surface Treatment: Protective Coating
• Chain Roller Width: 0.6250 in
• Chain Roller Diameter: 1.1250 in
• Length Through Bore: 1.7500 in
• Effective Number Of Teeth: 5.5
• Storage Dimension Width: 8.0100 in
• Storage Dimension Height: 1.7500 in
• Storage Dimension Length: 8.0100 in
