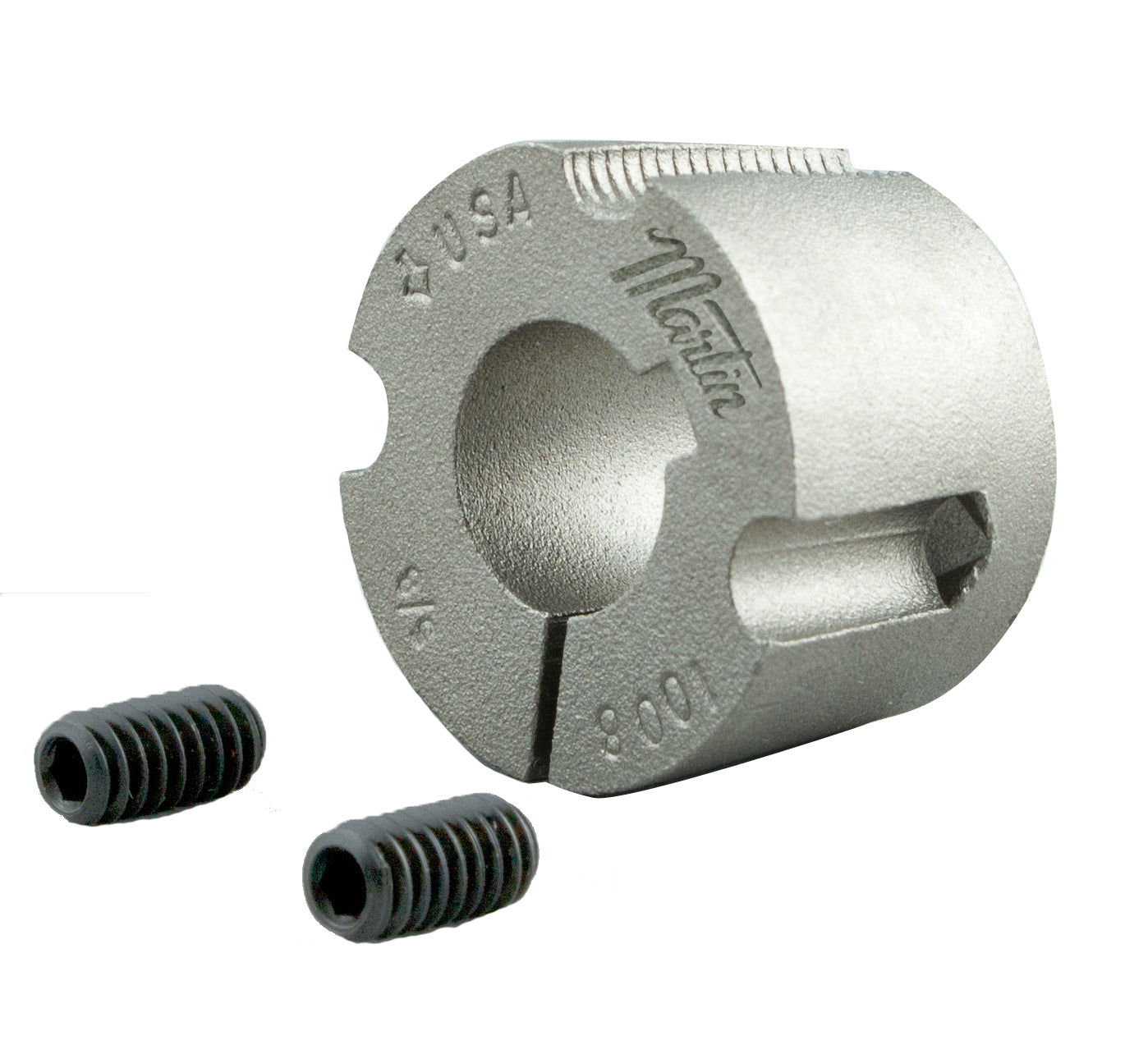

Martin 201213/16 Standard Taper Lock Bushing, 1-3/16 in Dia Bore, 2-3/4 in Dia Barrel, 1-1/4 in OAL, 7150 in-lb

Product Description

Martin 201213/16 Taper Lock Bushing is designed for precise use in various applications. This standard bushing features a bore diameter of one and three-sixteenths inches. The barrel diameter measures two and three-fourths inches, and an overall length of one and one-fourth inches. Made from steel, this bushing meets industry standards for quality and reliability.

• Applications in power transmission systems
• Suitable for flush mounting without a flange
• Interchangeable with other taper bushings

Product Highlights

High-strength design suitable for solid mounting in mechanical settings.

Product Information

Standard Information

• Type: Standard
• Material: Steel

Technical Specifications

• Bore Diameter: 1-3/16 in
• Barrel Diameter: 2-3/4 in
• Hub Diameter: 3-7/8 in
• Overall Length: 1-1/4 in
• Keyway Size: 1/4 x 1/8 in
• Screw Size: 7/16 x 7/8 in
• Torque Rating: 7150 in-lb
• Taper: 8 deg
• Number of Bolt Holes: 2
• Bolt Circle Diameter: 2-5/8 in
• Standards/Approvals: ANSI B15.1
