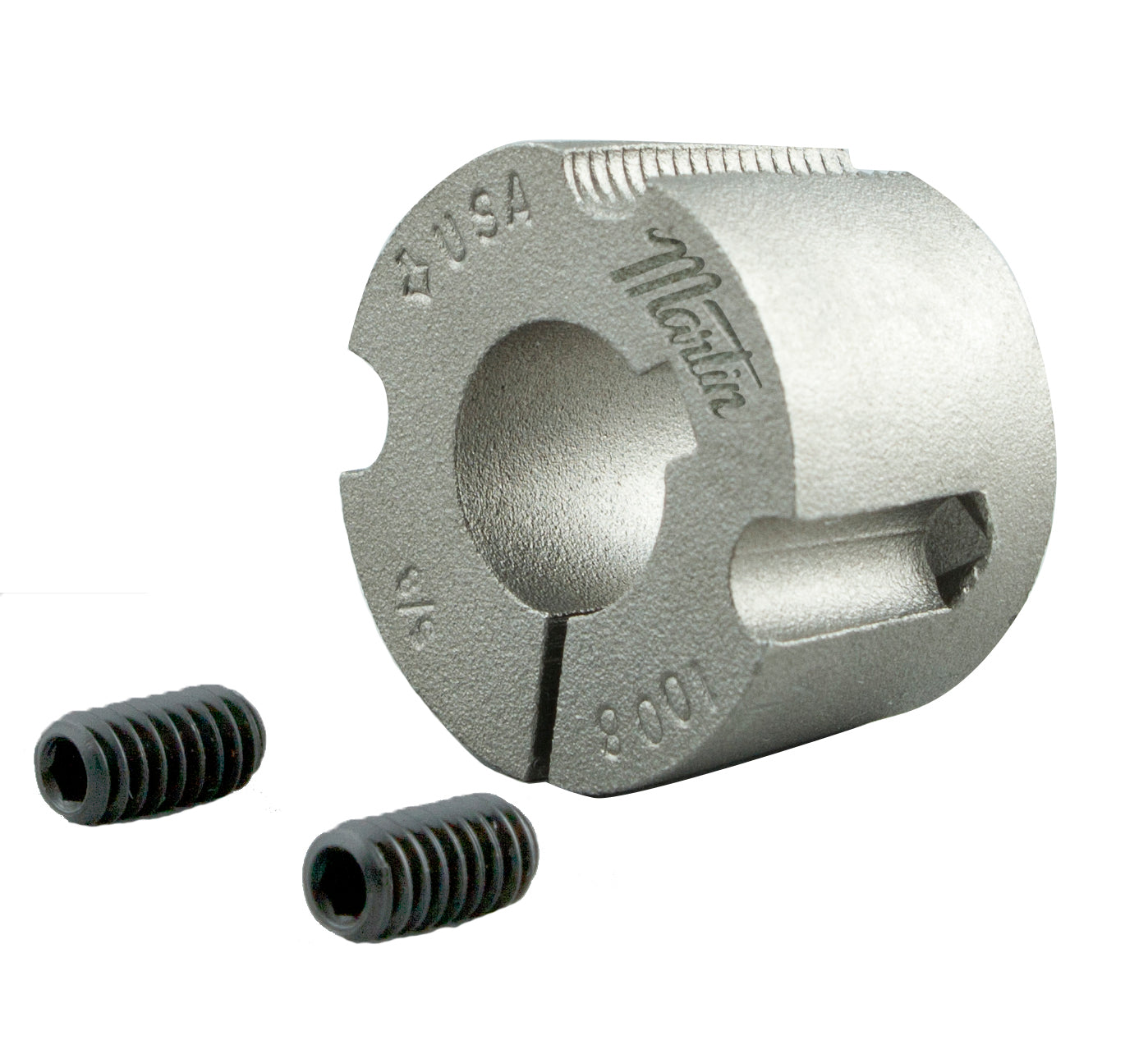

Martin 2012 1 15/16 Standard Taper Lock Bushing

Product Description

The Martin Taper Lock Bushing MPN 2012115/16 provides reliable support and secure mounting for various applications. This standard bushing has a bore diameter of one and fifteen-sixteenths inches and is made from durable steel.

• Bore Diameter: 1-15/16 inches
• Overall Length: 1-1/4 inches
• Torque Rating: 7150 in-lb

Product Highlights

This bushing is designed for flush mounting without a flange. It meets ANSI B15.1 standards for precise machinery and quality. It is interchangeable with other taper bushings, making it a versatile choice for maintenance and repair.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Manufacturer Part Number: 2012 1 15/16

Technical Specifications

• Material: Steel
• Hub Diameter: 3-7/8 inches
• Barrel Diameter: 2-3/4 inches
• Bolt Circle Diameter: 2-5/8 inches
• Number of Bolt Holes: 2
• Screw Size: 7/16 x 7/8 inches
• Keyway Size: 1/2 x 3/16 inches
• Taper: 8 degrees
• Type: Standard
• Torque Rating: 7150 in-lb
