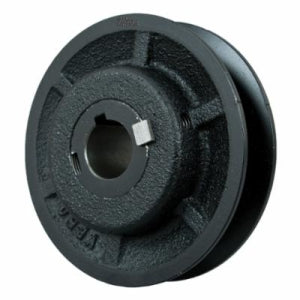

Martin 1VP505/8 Variable Pitch Sheave - 1 Groove, 3L, A, 4L, B, 5L Belt Section Size

Product Description

The Martin 1VP505/8 is a variable pitch sheave designed for specific belt section sizes including 3L, A, 4L, B, and 5L. This sheave has a bore that measures zero point six two five inches and an outside diameter of four point seven five inches. It is made of cast iron and features a durable construction suited for mechanical power transmission tasks.

• Single groove design allows for adjustable speed.
• Positive locking system enhances performance.
• Manufactured with precise machining for consistent quality.

Product Highlights

This product is ideal for various applications requiring efficient belt drive solutions. Its versatility makes it suitable for different types of machinery and setups.

Product Information

Standard Information

• Brand: Martin
• Part Number: 03714579

Technical Specifications

• Weight: 2.65 lbs
• Material: Cast Iron
• Bore Type: Finished
• Keyway Size: 3/16 X 3/32 in
• Bore Diameter: 0.6250 in
• Outside Diameter: 4.75 in
• Belt Section Size: B, 3L, 4L, 5L, A
• Number Of Grooves: 1
• Set Screw Size: 5/16 - 18 in
• Hub Outside Diameter: 2.5000 in
• Length Through Bore: A 2, B 2 5/32 in
• Sheave Type: VP
