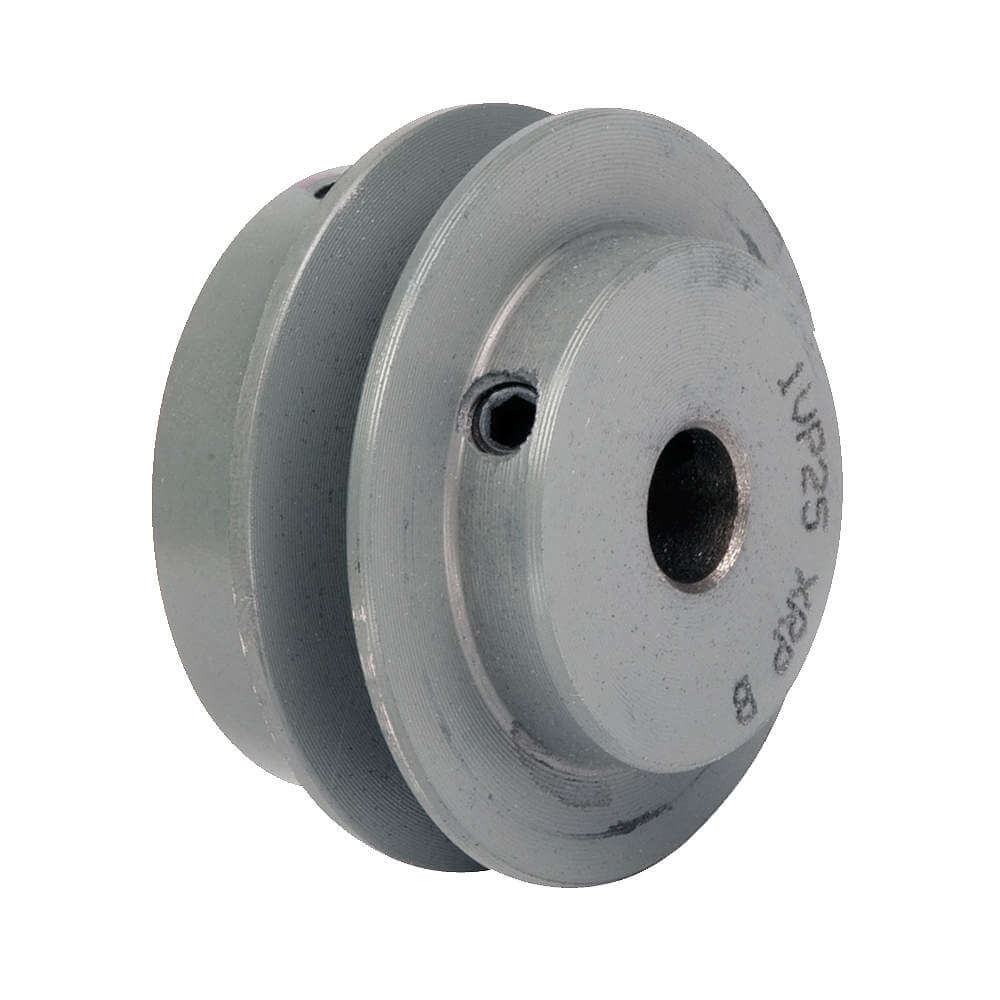

Martin 1VP501/2 Variable Pitch Sheave - 1 Groove, 3L, A, 4L, B, 5L Belt Section Size

Product Description

The Martin 1VP501/2 is a variable pitch sheave designed for versatile use in mechanical power transmission. This sheave features a bore size of zero point five inches and an outer diameter of four point seven five inches. It is made from durable cast iron, ensuring longevity and reliability.

• Compatible with 3L, A, 4L, B, 5L belt section sizes.
• Stationary adjustable speed sheaves for precise operation.
• Positive locking system for enhanced performance.

Product Highlights

Engineered for efficiency and precision, this sheave offers exceptional durability and easy integration into existing systems.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: Mexico

Technical Specifications

• Weight: 2.71 lbs
• Material: Cast Iron
• Bore Type: Finished
• Sheave Type: VP
• Bore Diameter: 0.5000 in
• Outside Diameter: 4.75 in
• Number Of Grooves: 1
• Length Through Bore: A 2, B 2 5/32 in
• Hub Outside Diameter: 2.3750 in
