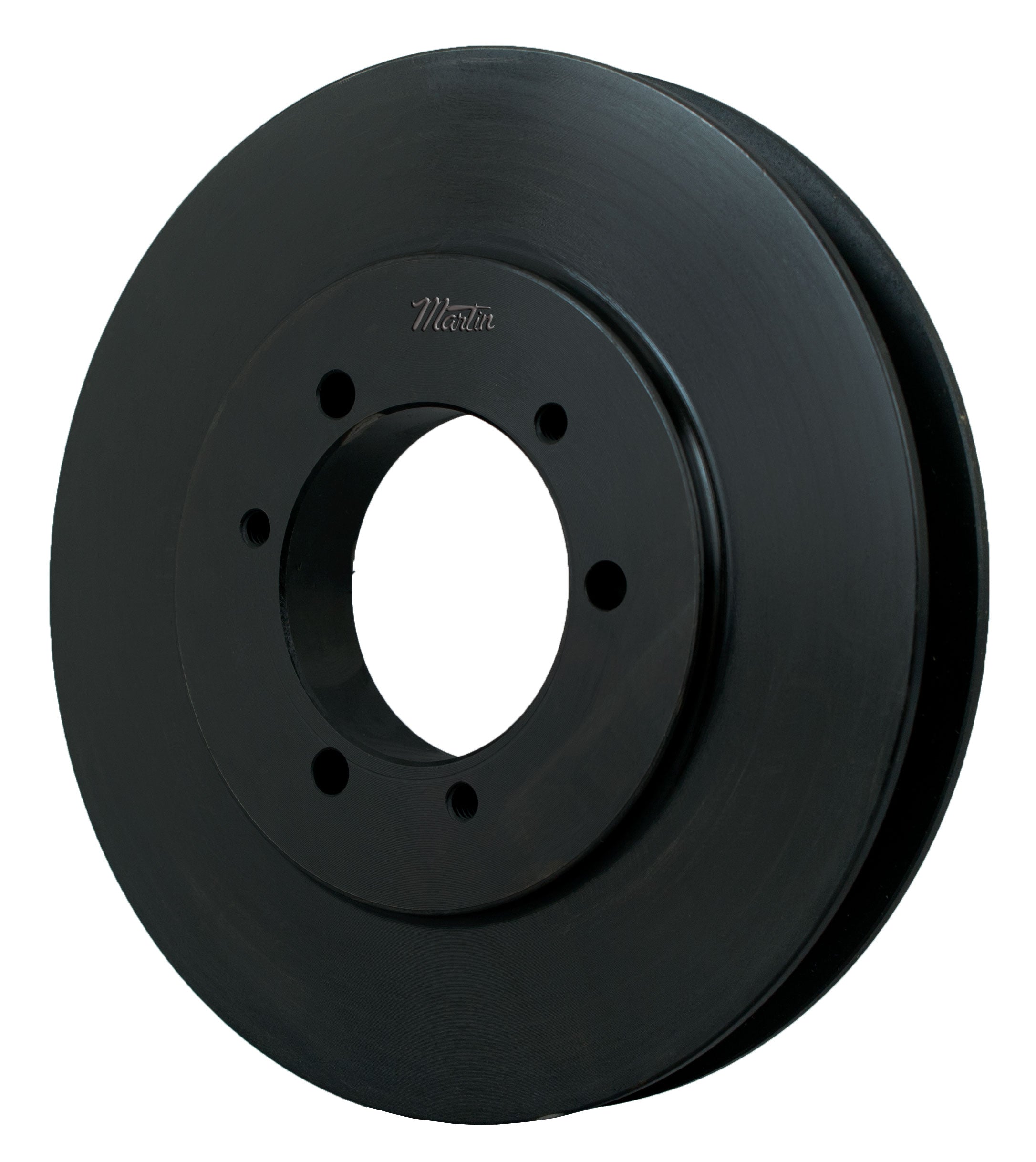

Martin 1B70SDS Type C-2 Web Single Groove Conventional Sheave, QD Bushed Bore, 1/2 to 2 in Dia Bore, 7.35 in OD, 7 in Dia Pitch, 1 in W Face

Product Description

Martin 1B70SDS is a conventional single groove sheave designed for various mechanical applications. This sheave features a QD® bushed bore adaptable for bore diameters ranging from one-half to two inches. The outer diameter measures seven point thirty-five inches, while the pitch diameter is seven inches. Its face width is one inch, making it suitable for use with AB cross section V-belts.

• Suitable for A, B, C, and D belts
• Manufactured from class 30 gray iron
• Maximum speed of six thousand five hundred feet per minute

Product Highlights

Engineered for effective power transfer, the Martin sheave is statically balanced for smooth operation. Dynamic balancing is recommended at higher speeds or in conditions where vibration is critical. It is built to provide reliable performance in various settings.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Part Number: 1B70SDS

Technical Specifications

• Material: Cast Iron
• Bore Type: QD® Bushed
• Bore Diameter: 1/2 to 2 in
• Pitch Diameter: 7 in
• Outside Diameter: 7.35 in
• Face Width: 1 in
• Overall Length: 1.63 in
• Suitable For Use With: AB Cross Section V-Belts
• Type: Type C-2 Web
• Country of Origin: US
