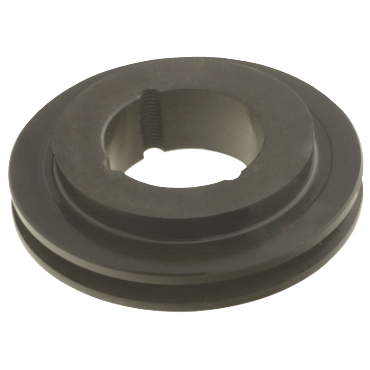

Martin 1B60TB A-B Series Combination Groove Conventional Taper Bushed Sheave

Product Description

The Martin 1B60TB is an A-B Series combination groove conventional taper bushed sheave designed for industrial applications. It is suitable for use with A and B belts and offers precise dimensions for effective performance.

• A/B Belt Size Compatibility
• Dimensions Include 6.35 inches Outside Diameter
• Minimum Bore Range of 0.5 inches and Maximum Bore Range of 1.5 inches

Product Highlights

The sheave is statically balanced for smooth operation and can withstand rim speeds of up to 6,500 feet per minute. This product is interchangeable with other manufacturers’ sheaves and bushings, enhancing its utility in various installations.

Product Information

Standard Information

• Brand: Martin
• Part Number: 100785628

Technical Specifications

• Material: Steel
• Pitch Diameter: 6 inches
• No. of Grooves: 1
• Bushing Series: 1610
• Outside Diameter: 6.35 inches
• Bushing Type: Taperlock
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 1.5 inches
