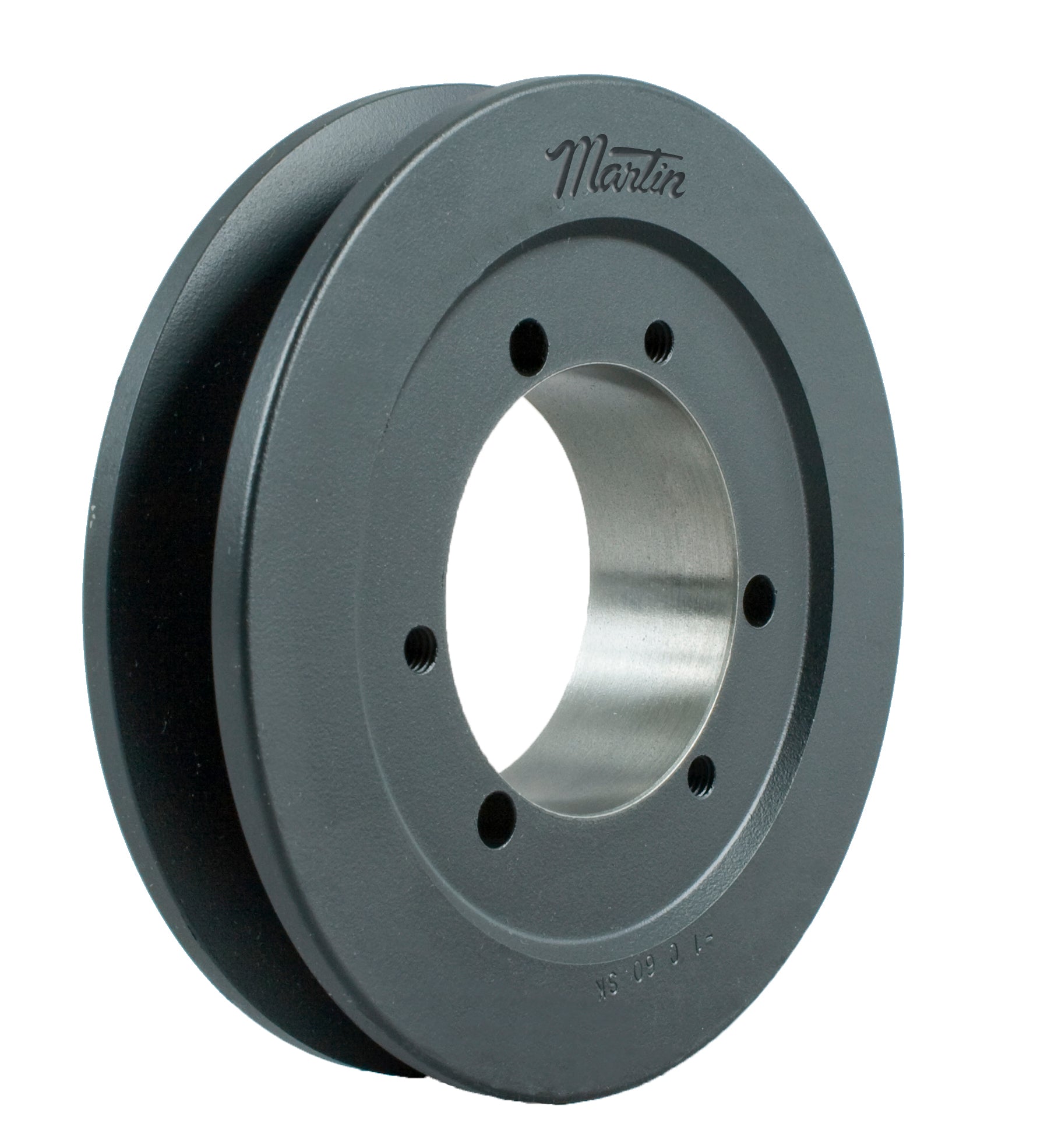

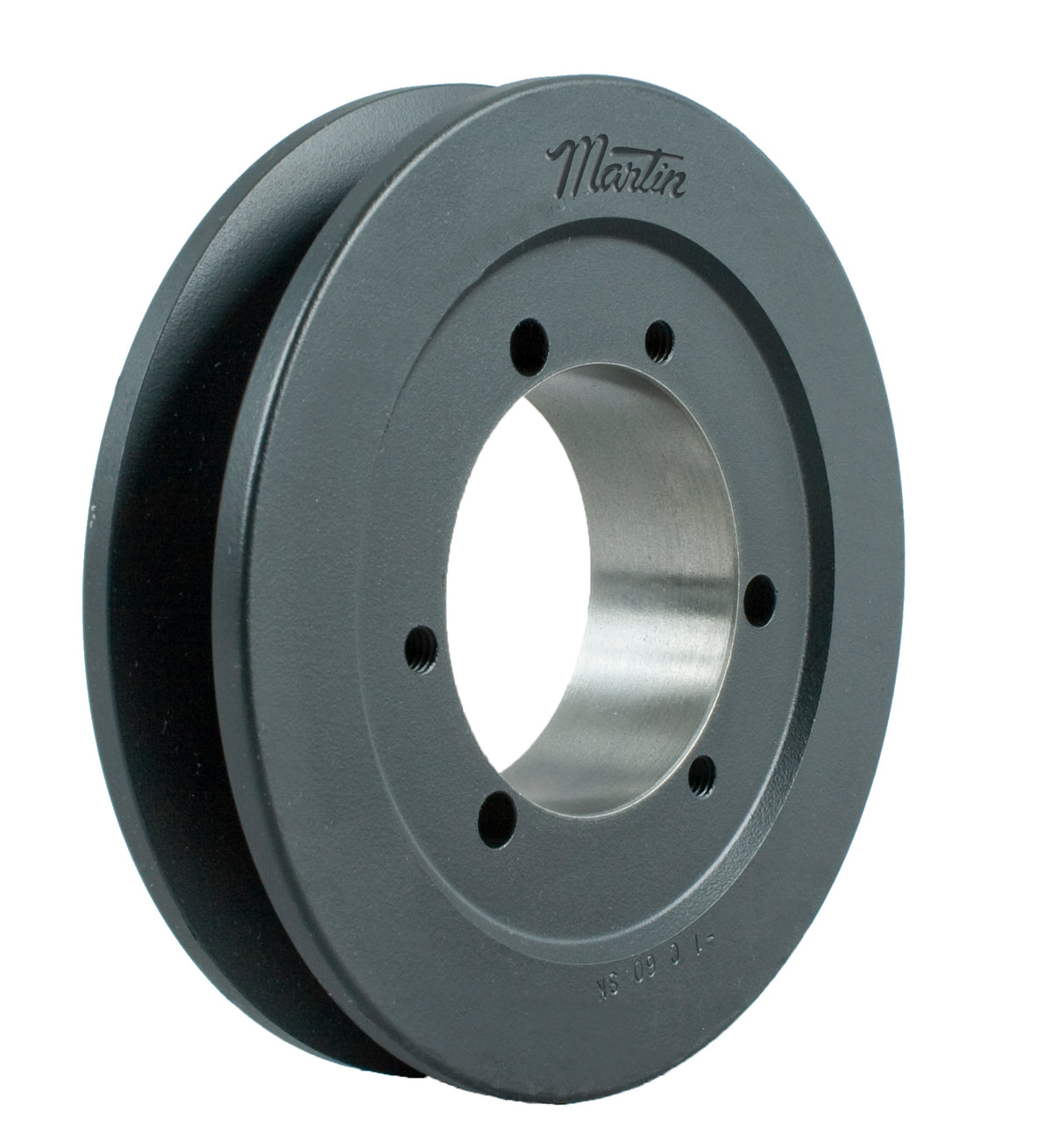

Martin 1B60SDS Solid Type C-1 Single Groove Conventional Sheave QD Bushed

Product Description

The Martin 1B60SDS is a solid type C-1 single groove conventional sheave with a QD Bushed bore. It supports bore diameters ranging from half to two inches. The outside diameter is 6.35 inches with a pitch diameter of six inches. The face width is seven-eighths of an inch, making it suitable for A and B cross-section belts.

• Manufactured from class 30 gray iron
• Static balance for smooth operation
• Dynamic balancing recommended for high-speed applications

Product Highlights

This sheave features a robust construction designed for durability and reliable performance in various applications.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• MPN: 1B60SDS

Technical Specifications

• Material: Steel
• Bore Type: QD Bushed
• Bore Diameter: 1/2 to 2 inches
• Outside Diameter: 6.35 inches
• Pitch Diameter: 6 inches
• Overall Length: 1-3/8 inches
• Face Width: 7/8 inches
• Bushing Type: SDS
• Suitable For Use With: A/B Cross Section Belts
• Type: Solid Type C-1
