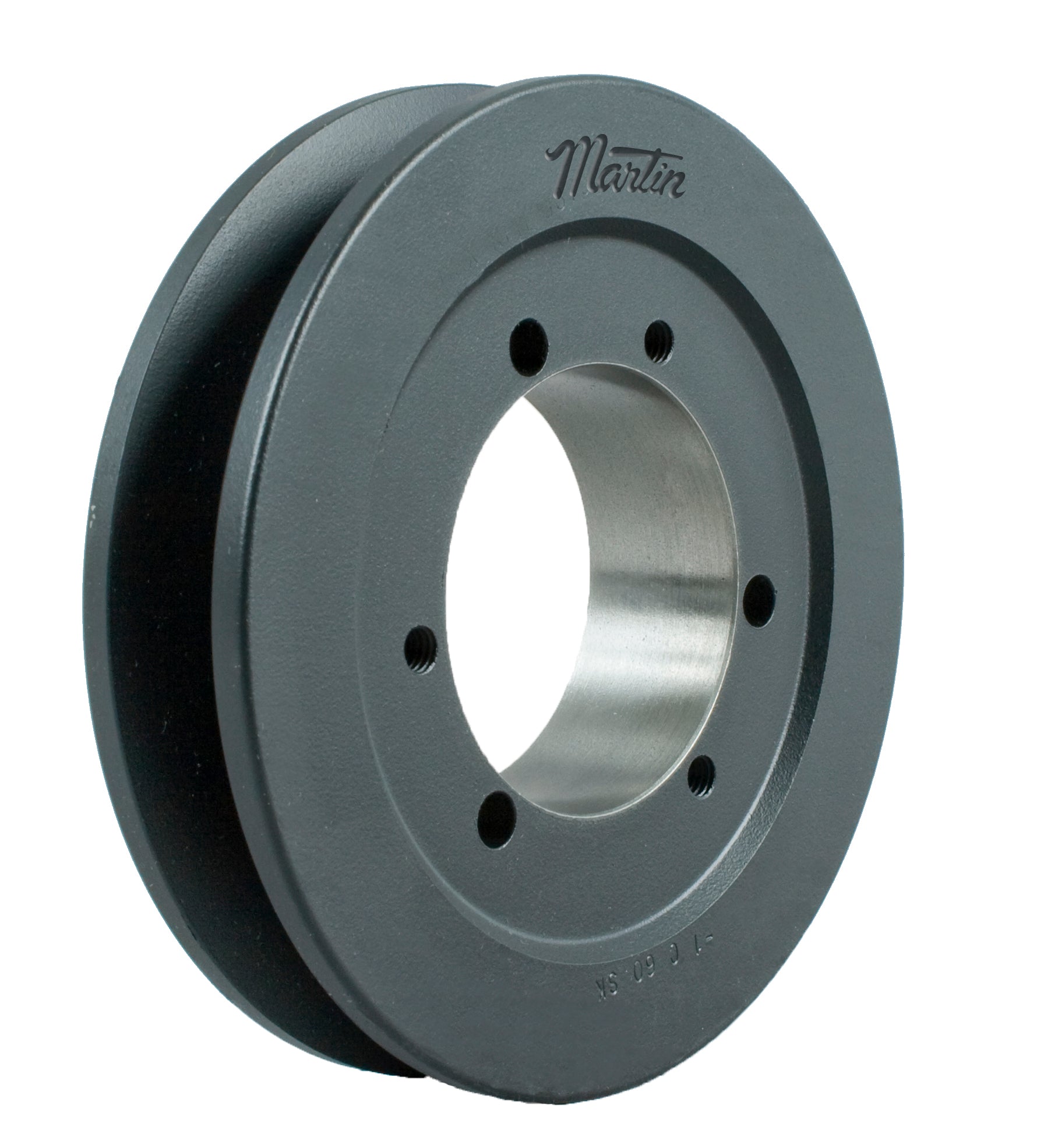

Martin 1B58SDS 1 B 58 SDS QD Sheave

Product Description

The Martin 1B58SDS is a solid type C-1 single groove conventional sheave, featuring a quick detachable (QD) bushed bore. This sheave accommodates bore diameters from one-half to two inches, with an outside diameter of six point fifteen inches and a pitch diameter of five point eight inches. The face width measures seven-eighths of an inch. This product is suitable for use with A and B cross-section belts, providing robust performance in various applications.

• Manufactured from class 30 gray iron
• Maximum speed capability of six thousand five hundred feet per minute
• Statically balanced for smooth operation

Product Highlights

The Martin 1B58SDS sheave is designed for durability and reliable performance in power transmission systems.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• MPN: 1B58SDS

Technical Specifications

• Bore Diameter: 1/2 to 2 in
• Bore Type: QD Bushed
• Bushing Type: SDS
• Face Width: 7/8 in
• Material: Steel
• Overall Length: 1-1/2 in
• Pitch Diameter: 5.8 in
• Outside Diameter: 6.15 in
• Suitable For Use With: A/B Cross Section Belts
• Type: Solid Type C-1
