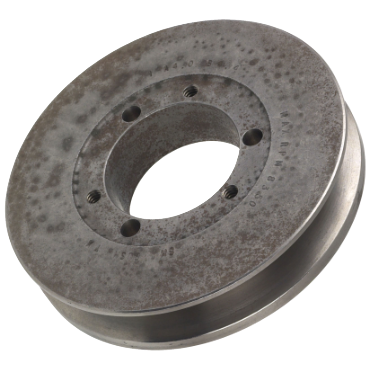

Martin 1B54SDS Bushing Bore V-Belt Pulley - A, B Belt Section, 1 Groove, 5.4 in Pitch Dia., 5.75 in O.D., Bushed, SDS Series Bushing

Product Description

The Martin 1B54SDS Bushing Bore V-Belt Pulley is a durable and efficient component designed for mechanical power transmission systems. This pulley features a pitch diameter of five point four inches and an outside diameter of five point seven five inches. It is compatible with A and B belt sections and includes a single groove for effective power transfer.

• Interchangeable with various manufacturer’s QD bushings
• Constructed from class thirty gray iron
• Designed for high quality with precise machining

Product Highlights

Designed for both reliability and efficiency, the Martin bushing pulley is key in various mechanical applications, including conveyor systems and industrial machinery.

Product Information

Standard Information

• Brand: Martin
• Country Of Origin: United States

Technical Specifications

• MPN: 1B54SDS
• Weight: 4.00 lbs
• Face Width: 0.8750 in
• Overall Width: 7/8 in
• Bushing Series: SDS
• Pitch Diameter: 5.4 in
• Outside Diameter: 5.7500 in
• Number Of Grooves: 1
• Bushing Bore Range: 0.5000 to 2.0000 in
• Length Through Bore: 1.375 in
• Storage Dimension Width: 6 in
• Storage Dimension Height: 1.0625 in
• Storage Dimension Length: 6 in
• Manufacturer UPC Number: 697950084732
