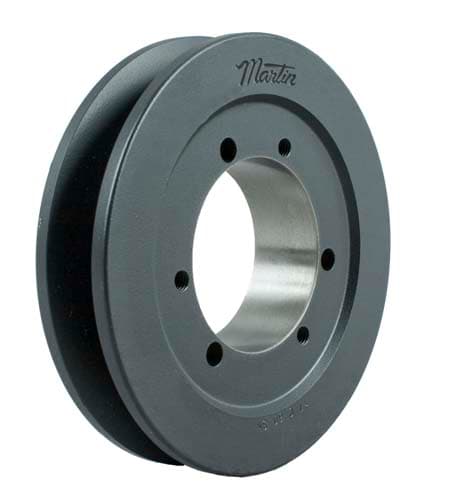

Martin 1B50SDS Bushing Bore V-Belt Pulley - A, B Belt Section, 1 Groove, 5 in Pitch Dia.

Product Description

The Martin 1B50SDS is a bushing bore V-belt pulley designed for A and B belt sections. This product features one groove and has a five-inch pitch diameter. The outer diameter measures five point three five inches, and it is made from durable steel material. The SDS series bushing allows for reliable connection to various applications.

• Interchangeable with other manufacturer’s QD bushings.
• Tolerances adhere to industry standards.
• Statically balanced with maximum rim speed marked.

Product Highlights

This pulley is made with class thirty gray iron, ensuring durability. Precise machining guarantees a consistent finish and high quality. It is ideal for mechanical power transmission in various industrial applications.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Weight: 3.00 lbs
• Face Width: 0.8750 in
• Overall Width: 7/8 in
• Pitch Diameter: 5 in
• Outside Diameter: 5.3500 in
• Number of Grooves: 1
• Bushing Series: SDS
• Bushing Bore Range: 0.5000 to 2.0000 in
• Length Through Bore: 1.375 in
• Storage Dimensions: 5.75 in (Width) x 1.1875 in (Height) x 5.75 in (Length)
