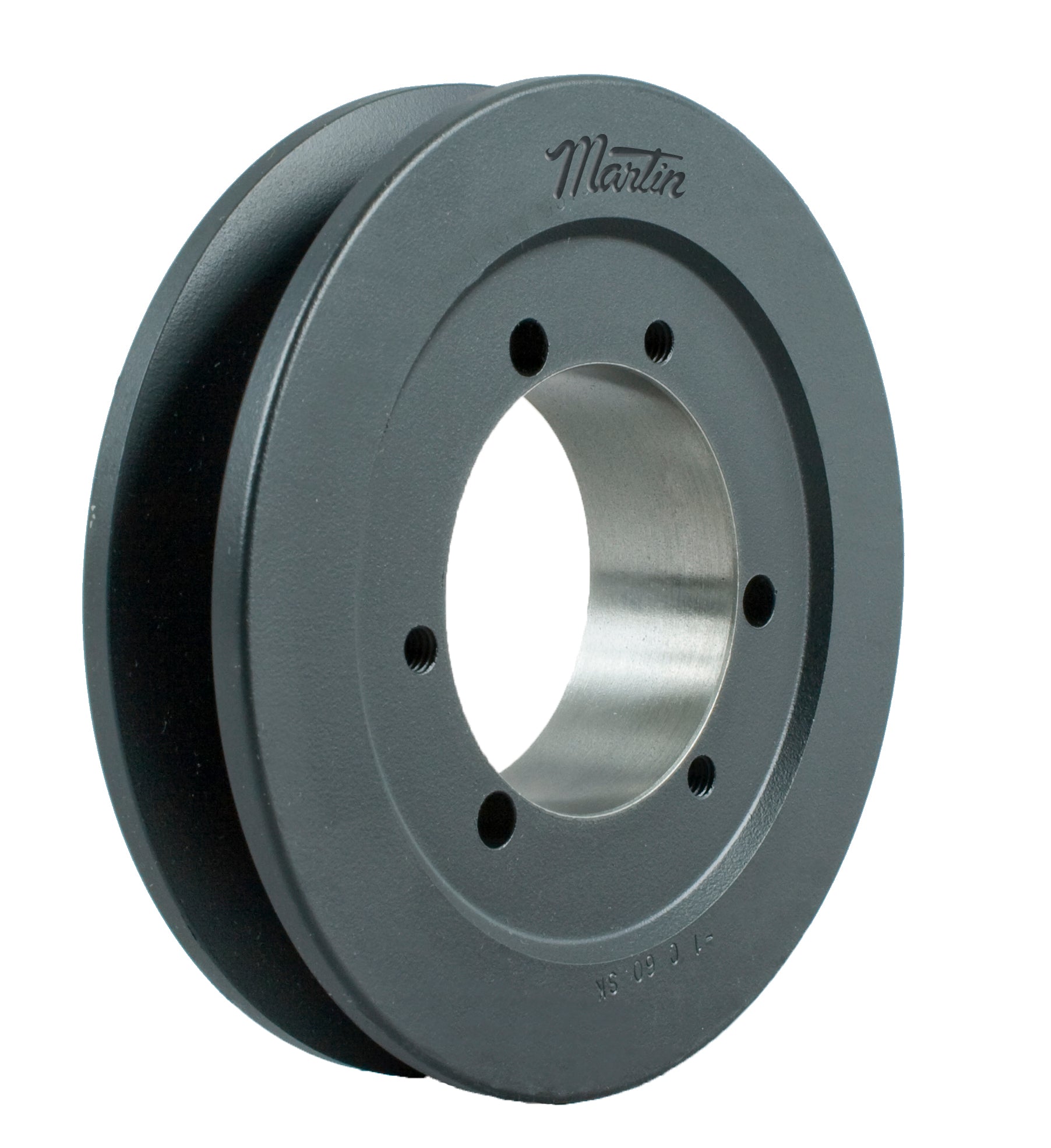

Martin 1B40SH Solid Type C-1 Single Groove Conventional Sheave QD Bushed Bore

Product Description

The Martin 1B40SH is a solid type C-1 single groove conventional sheave. It features a QD® bushed bore with a diameter range of half to one point six eight eight inches. The outside diameter is four point three five inches, and it has a pitch diameter of four inches. The sheave has a face width of seven eighths of an inch and is designed for use with A/B cross section belts.

• Manufactured from class 30 gray iron with a tensile strength of thirty thousand psi.
• Maximum speed capability of six thousand five hundred feet per minute.
• Suitable for dynamic balancing for applications with higher vibration concerns.

Product Highlights

Ideal for power transmission systems requiring reliable performance in typical industrial applications.

Product Information

Standard Information

• Brand: Martin
• Manufacturer: Martin Sprocket & Gear

Technical Specifications

• MPN: 1B40SH
• Bore Diameter: 0.5 to 1.688 inches
• Bore Type: QD® Bushed
• Bushing Type: SH
• Face Width: 7/8 inches
• Material: Steel
• Overall Length: 1.44 inches
• Pitch Diameter: 4 inches
• Outside Diameter: 4.35 inches
• Suitable For Use With: A/B Cross Section Belts
• Country of Origin: US
