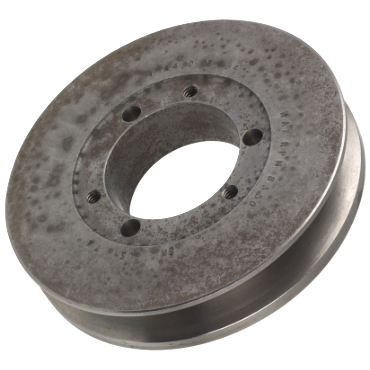

Martin 1B40SH Bushing Bore V-Belt Pulley - A, B Belt Section, 1 Groove, 4 in Pitch Dia., 4.35 in O.D., Bushed, SH Series Bushing

Product Description

The Martin 1B40SH is a bushing bore V-belt pulley designed for the A and B belt section. It features one groove and a pitch diameter of four inches, making it suitable for various power transmission applications. With a durable construction from steel material, this pulley has an outside diameter of four point three five inches and a face width of zero point eight seven five inches.

• Interchangeable with other manufacturer's QD bushings.
• Manufactured from Class 30 gray iron.
• Precisely machined for consistent quality and finish.

Product Highlights

This pulley is statically balanced and marked for maximum rim speed, ensuring safe and reliable operation.

Product Information

Standard Information

• Brand: Martin
• Country of Origin: United States

Technical Specifications

• Weight: 2.20 lbs
• Overall Width: 7/8 in
• Pitch Diameter: 4 in
• Outside Diameter: 4.3500 in
• Number of Grooves: 1
• Bushing Series: SH
• Bushing Bore Range: 0.5000 to 1.6875 in
• Length Through Bore: 1.3125 in
