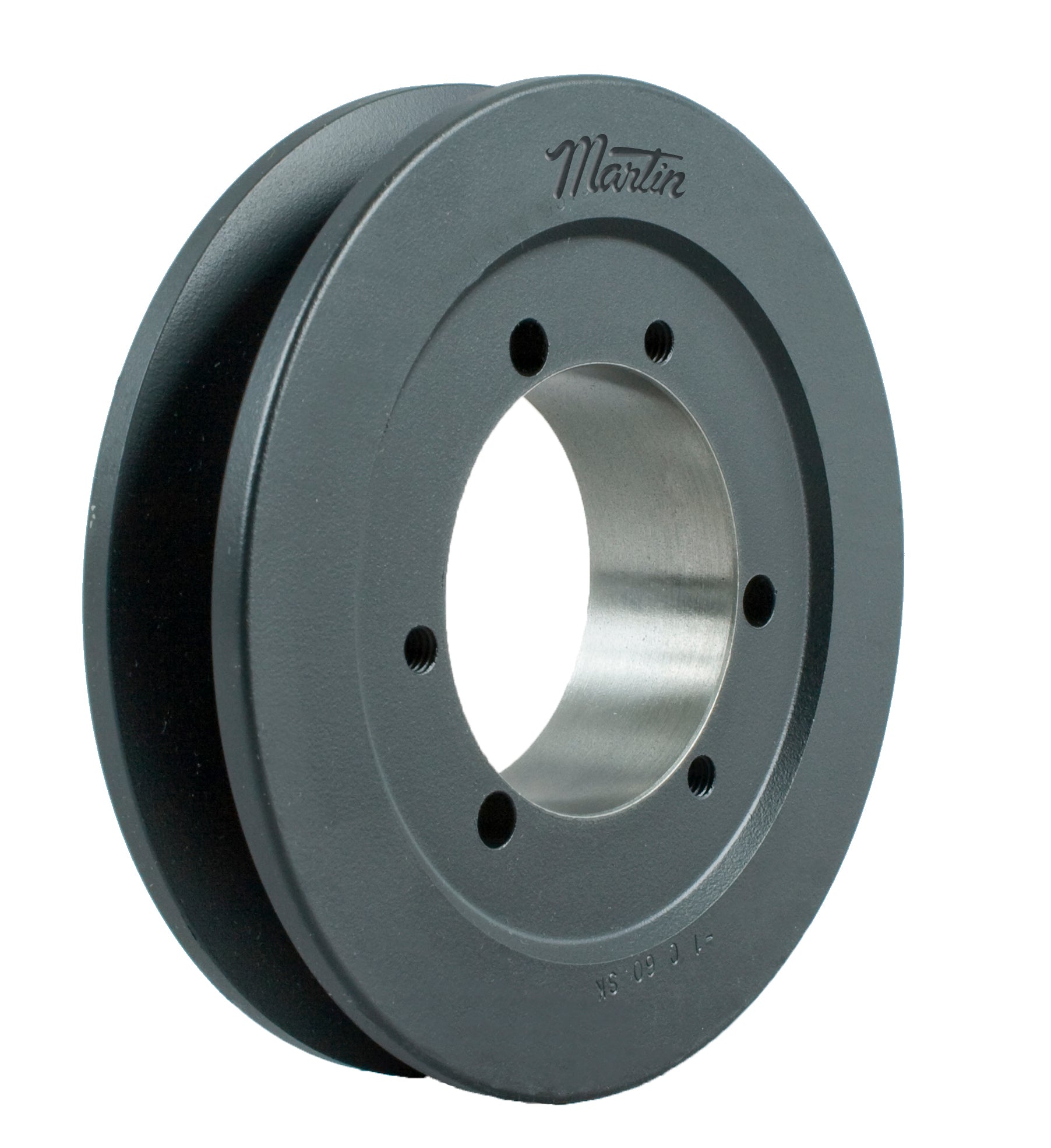

Martin 1B36SH Single Groove Conventional Sheave QD Bushed Bore 0.5 to 1.688 in Diameter

Product Description

Martin 1 B 36 SH is a single groove conventional sheave made of solid type D-1. This sheave features a QD® bushed bore and accommodates bore diameters ranging from 0.5 inches to 1.688 inches. The outer diameter is 3.95 inches with a pitch diameter of 3.6 inches and a face width of 7/8 inch. It is designed for use with A/B cross-section belts.

• Constructed from class 30 gray iron for high tensile strength.
• Statically balanced and suitable for use at speeds up to 6500 fpm.
• Ideal for various applications that require reliable and durable power transmission.

Product Highlights

Reliable performance for power transmission in industrial settings.

Product Information

Standard Information

• Brand: Martin Sprocket & Gear
• Manufacturer Part Number: 1 B 36 SH

Technical Specifications

• Material: Steel
• Bore Type: QD® Bushed
• Face Width: 7/8 in
• Bushing Type: SH
• Bore Diameter: 0.5 to 1.688 in
• Overall Length: 1.56 in
• Pitch Diameter: 3.6 in
• Outside Diameter: 3.95 in
• Suitable For Use With: A/B Cross Section Belts
• Type: Solid Type D-1
