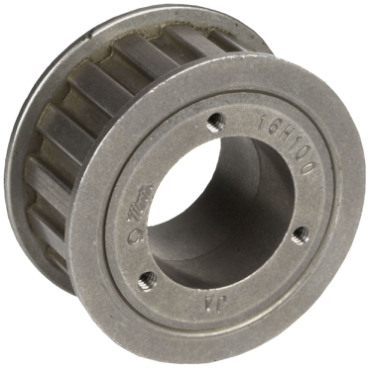

Martin 18H100SH H Series, 1/2 Pitch QD Bushed Timing Pulley

Product Description

The Martin 18H100SH is a 1/2 pitch QD bushed timing pulley designed to ensure accurate belt engagement. This pulley features evenly spaced axial grooves to minimize friction between the belt teeth and pulley grooves. It is suitable for various applications like agitators, conveyors, and pumps.

• Compatible with H belt type
• Requires SH bushing
• Offers a maximum bore range of 1 5/8 inches

Product Highlights

This timing pulley provides constant speed, low backlash, and no need for lubrication. It is designed for durability and high performance in demanding settings.

Product Information

Standard Information

• Brand: Martin
• Part Number: 18H100SH

Technical Specifications

• Bore Range (Max): 1 5/8 inches
• Bore Range (Min): 1/2 inches
• Bore Type: Taper-Lock and QD Bushed
• Belt Width: 1 inch
• Belt Pitch: 1/2 inches
• No. of Teeth: 18
• Outside Diameter: 2.8110 inches
• Pitch Diameter: 2.865 inches
• Weight: 1.0 LB
